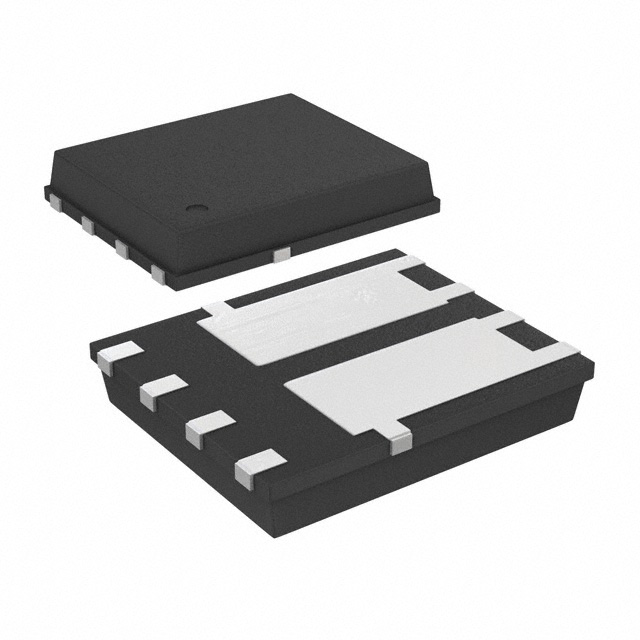

SBR3U60SLDQ-13

Active

Diodes Inc

3.0A SBR DUAL ISOLATED SUPER BARRIER RECTIFIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

SBR3U60SLDQ-13

Active

Diodes Inc

3.0A SBR DUAL ISOLATED SUPER BARRIER RECTIFIER

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBR3U60SLDQ-13

Current - Average Rectified (Io) (per Diode)	3 A
Current - Reverse Leakage @ Vr	100 µA
Diode Configuration	2 Independent
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	8-PowerTDFN
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	PowerDI5060-8 (Type D)
Technology	Super Barrier
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	600 mV

SBR3U60SLDQ Series

3.0A SBR DUAL ISOLATED SUPER BARRIER RECTIFIER

Part	Current - Average Rectified (Io)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Grade	Supplier Device Package	Qualification	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Diodes Inc SBR3U60P5Q-7	3 A	PowerDI™ 5	60 V	Standard Recovery >500ns	200 mA	Automotive	PowerDI™ 5	AEC-Q101	Surface Mount	150 °C	-65 C	100 µA	Super Barrier
Diodes Inc SBR3U60SLDQ-13		8-PowerTDFN	60 V	Standard Recovery >500ns	200 mA	Automotive	PowerDI5060-8 (Type D)	AEC-Q101	Surface Mount	175 ░C	-55 C	100 µA	Super Barrier	600 mV	2 Independent	3 A
Diodes Inc SBR3U60P5Q-13	3 A	PowerDI™ 5	60 V	Standard Recovery >500ns	200 mA	Automotive	PowerDI™ 5	AEC-Q101	Surface Mount	150 °C	-65 C	100 µA	Super Barrier
Diodes Inc SBR3U60P5Q-7D	3 A	PowerDI™ 5	60 V	Standard Recovery >500ns	200 mA	Automotive	PowerDI™ 5	AEC-Q101	Surface Mount	150 °C	-65 C	100 µA	Super Barrier
Diodes Inc SBR3U60P5Q-13D	3 A	PowerDI™ 5	60 V	Standard Recovery >500ns	200 mA	Automotive	PowerDI™ 5	AEC-Q101	Surface Mount	150 °C	-65 C	100 µA	Super Barrier

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.52
		5000	$ 0.50
		12500	$ 0.49

Description

General part information

SBR3U60SLDQ Series

Packaged in the compact thermally efficient PowerDI®5, the SBR3U60P5Q provides low VF and low reverse leakage at high temperatures. It is ideal for use in the following applications: bridge diodes, freewheeling diodes, blocking diodes, and reverse protection diodes.
