243A10150X

Obsolete

Amphenol CONEC

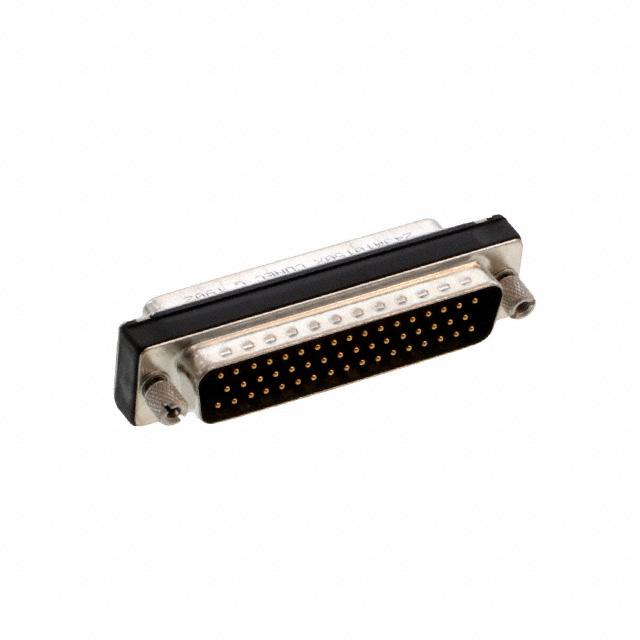

CONN DSUB ADAPTER DB50F DB50M

Search across all available documentation for this part.

Obsolete

Amphenol CONEC

CONN DSUB ADAPTER DB50F DB50M

Technical Specifications

Parameters and characteristics for this part

Specification	243A10150X

Connector Style	Connector Saver
Contact Finish	Gold
Contact Finish Thickness	Flash
Convert From (Adapter End)	D-Sub, 50 Pin Male
Convert To (Adapter End)	D-Sub, Female, 50 Pin
Current Rating (Amps)	7.5 A
Features	Filter
Housing Color	Black
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Voltage Rating	100 V

Part	Voltage Rating	Number of Rows	Mounting Type	Convert To (Adapter End)	Connector Style	Current Rating (Amps)	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Housing Color	Includes	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 243A10130X	100 V	3	Free Hanging (In-Line)	50 Pin D-Sub Female	Connector Saver	7.5 A	D-Sub 50 Pin Male	-25 °C	105 ░C	UL94 V-0	Black	1 Connector 2 Jack Screws	Gold	Filter	8 çin	0.203 çm
Amphenol CONEC 243A10150X	100 V	3	Free Hanging (In-Line)	50 Pin D-Sub Female	Connector Saver	7.5 A	D-Sub 50 Pin Male	-25 °C	105 ░C	UL94 V-0	Black	1 Connector 2 Jack Screws	Gold	Filter			Flash
Amphenol CONEC 243A10140X	100 V	3	Free Hanging (In-Line)	50 Pin D-Sub Female	Connector Saver	7.5 A	D-Sub 50 Pin Male	-25 °C	105 ░C	UL94 V-0	Black	1 Connector 2 Jack Screws	Gold	Filter	8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Connector D-Sub, 50 Pin Female To D-Sub, 50 Pin Male Free Hanging (In-Line)
