PS48V-2.5

Obsolete

Tycon Systems Inc.

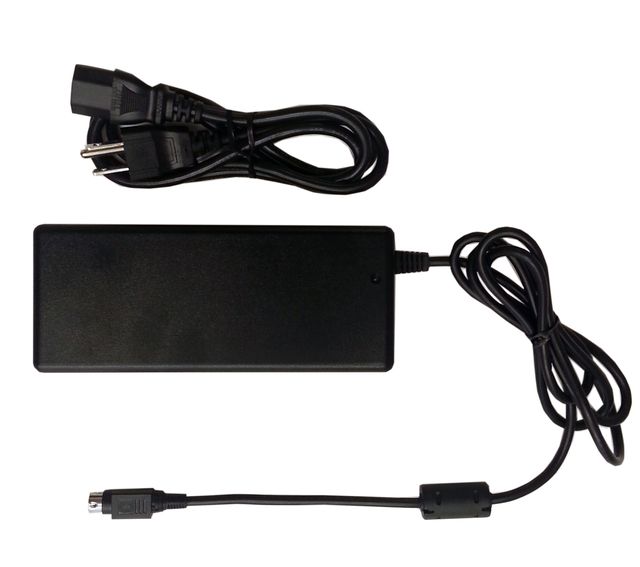

AC/DC DESKTOP ADAPTER 48V 120W

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

AC/DC DESKTOP ADAPTER 48V 120W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 48V 120W

Part	Current - Output (Max) [Max]	Input Type	Efficiency	Output Connector	Output Connector	Form	Region Utilized	Voltage - Output	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)
Tycon Systems Inc. PS48V-2.5	2.5 A	Cord	80 %	4 Pin	Power DIN	Desktop (Class II)	International	48 V	1.2 m	47.2 in	-10 °C	40 °C	33 mm	66 mm	6.6 "	1.3 "	2.6 "	167.6 mm	ITE (Commercial)	90 VAC	264 VAC	120 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

48V 120 W AC/DC External Desktop (Class II) Adapter Cord Input
