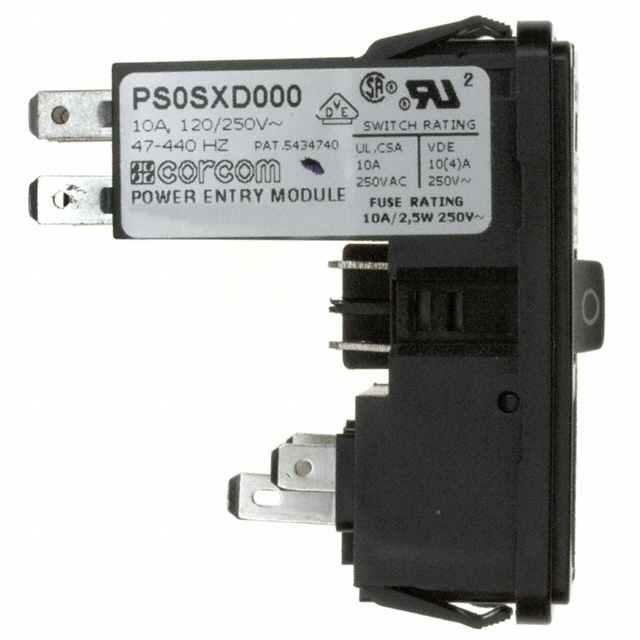

PS0SXD000

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PS0SXD000

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	0.083 "
Panel Thickness [Max]	2.11 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Features	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet	Switch Features	Accomodates a Fuse	Mounting Type	Approval Agency	Filter Type	Connector Type	Termination	Termination	Termination	Panel Cutout Dimensions	Connector Style	Current Rating - Appliance Inlet
TE Connectivity Corcom Filters PS0SXD000	Voltage Selector	0.083 "	2.11 mm	0.031 "	0.79 mm	Fuse Holder, Twin Fused	120 VAC	Switch On-Off		Panel Mount, Snap-In	CSA, UL, VDE	Unfiltered - Commercial	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect	Variable Size	IEC 320-C14	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
