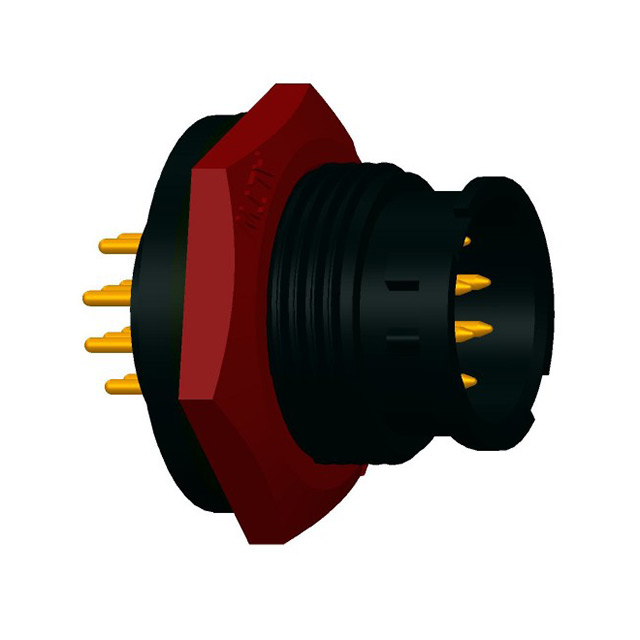

BU-12PMMP-LC7001

Active

Amphenol LTW

CONN RCPT MALE 12POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 12POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BU-12PMMP-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder

Part	Current Rating (Amps)	Termination	Shielding	Contact Material	Connector Type	Contact Finish - Mating	Mounting Feature	Number of Positions	Shell Size - Insert	Ingress Protection	Insert Material	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Color	Orientation	Mounting Type
Amphenol LTW BU-12PMMP-LC7001	2 A	Solder	Unshielded	Copper Alloy	Male Pins Receptacle	Gold	Bulkhead - Front Side Nut	12	B	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Plastic	Bayonet Lock	Black	Keyed	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder
