TC-200-BM-X
ActiveAmphenol Times Microwave Systems

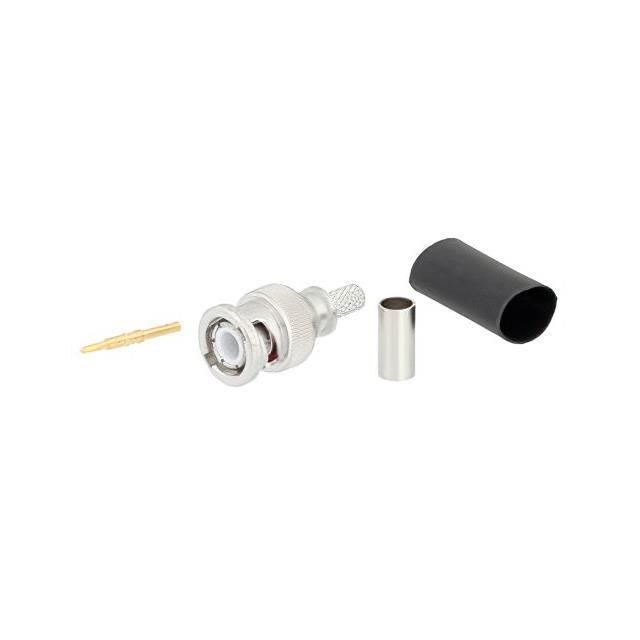

BNC-MALE (PLUG) CRIMP CONNECTOR;
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC-200-BM-X
ActiveAmphenol Times Microwave Systems
BNC-MALE (PLUG) CRIMP CONNECTOR;
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC-200-BM-X | TC-200 Series |
|---|---|---|
| - | - | |
| Body Finish | White Bronze | White Bronze, Nickel, Silver |
| Body Material | Brass | Brass, Stainless Steel |
| Cable Group | LMR-200 | LMR-200 |
| Center Contact Material | Brass | Beryllium Copper, Brass, Phosphor Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | BNC | TNC, SMA, RP-SMA, Mini, UHF, BNC, RP-N Type, N Type, FME |
| Connector Type | Male Pin, Plug | Female Socket, Jack, Male Pin, Plug |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz | 1 - 6000 MHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Mating Cycles | - | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 85 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -40 ░C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | - | 500 - 750 VDC |
TC-200 Series
CONN
| Part | Shield Termination | Body Finish | Cable Group | Housing Color | Connector Style | Body Material | Number of Ports | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Center Contact Material | Dielectric Material | Impedance | Frequency - Max [Max] | Contact Termination | Center Contact Plating | Voltage Rating | Fastening Type | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems TC-200-TM-X | ||||||||||||||||||||
Amphenol Times Microwave Systems TC-200-TF-X | Crimp | White Bronze | LMR-200 | Silver | TNC | Brass | 1 | Free Hanging (In-Line) | -65 ░C | 165 °C | Female Socket, Jack | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 50 Ohms | 6000 MHz | Solder | Gold | |||
Amphenol Times Microwave Systems TC-200-SM-SS-X | Crimp | LMR-200 | Silver | SMA | Stainless Steel | 1 | Free Hanging (In-Line) | -40 °C | 85 °C | Male Pin, Plug | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | 2.5 GHz | Solder | Gold | ||||
Amphenol Times Microwave Systems TC-200-SM-RP | Crimp | LMR-200 | Silver | RP-SMA | Stainless Steel | 1 | Free Hanging (In-Line) | -40 °C | 85 °C | Female Socket, Plug | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | 2.5 GHz | Solder | Gold | 750 VDC | |||
Amphenol Times Microwave Systems TC-200-MUHF | Crimp | Nickel | LMR-200 | Silver | Mini, UHF | Brass | 1 | Free Hanging (In-Line) | -40 °C | 85 °C | Male Pin, Plug | Brass | Polyoxymethylene (POM) | 50 Ohms | 2.5 GHz | Solder | Gold | |||
Amphenol Times Microwave Systems TC-200-SM-RA-D | ||||||||||||||||||||
Amphenol Times Microwave Systems TC-200-BM-X | Crimp | White Bronze | LMR-200 | Silver | BNC | Brass | 1 | Free Hanging (In-Line) | -65 ░C | 165 °C | Male Pin, Plug | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | 4 GHz | Solder | Gold | Bayonet Lock | ||
Amphenol Times Microwave Systems TC-200-TMC | Clamp | Silver | LMR-200 | Silver | TNC | Brass | 1 | Free Hanging (In-Line) | -40 °C | 85 °C | Male Pin, Plug | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | 3 GHz | Solder | Gold | 500 V | ||
Amphenol Times Microwave Systems TC-200-NM-RP | Crimp | Nickel | LMR-200 | Silver | RP-N Type | Brass | 1 | Free Hanging (In-Line) | -40 °C | 85 °C | Female Socket, Plug | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | 1 GHz | Solder | Gold | |||
Amphenol Times Microwave Systems TC-200-NMH-X | Crimp | White Bronze | LMR-200 | Silver | N Type | Brass | 1 | Free Hanging (In-Line) | -65 ░C | 165 °C | Male Pin, Plug | Brass, Phosphor Bronze | Polytetrafluoroethylene (PTFE) | 50 Ohms | 6000 MHz | Solder | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 50 | $ 13.98 | |
| Retail Package | 1 | $ 16.79 | ||
Description
General part information
TC-200 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
