796275-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 16POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 16POS PNL MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

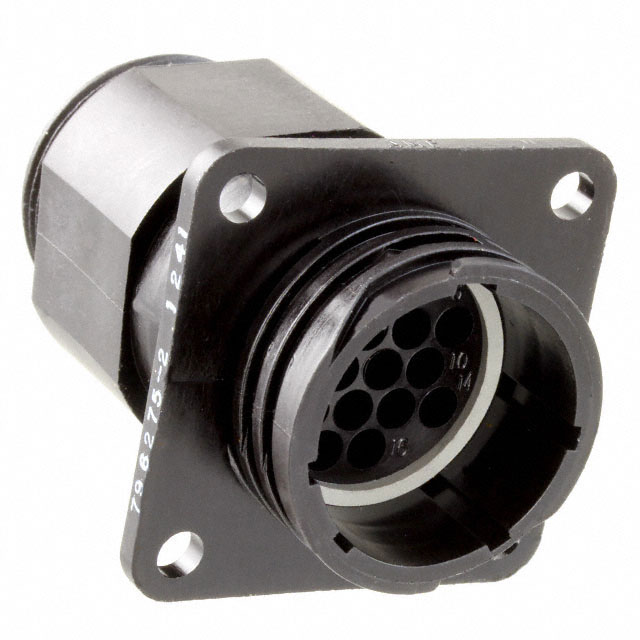

16 Position Circular Connector Receptacle Housing Panel Mount Backshell

Technical documentation and resources

Specification	796275-2	796275 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	16	16
Contact Type	Crimp	Crimp
Features	Backshell	Backshell
Housing Color	Black	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	Contacts Not Included	Contacts Not Included
Number of Positions	16	16
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shell Size - Insert [Max]	16	16
Shell Size - Insert [Min]	17	17
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Size	Type	Shielding	Features	Contact Shape	Note	Connector Type	Ingress Protection	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Insert Material	Orientation	Contact Type	Housing Color	Number of Positions
TE Connectivity AMP Connectors 796275-1	17	16	16	For Male Pins	Unshielded	Backshell	Circular	Contacts Not Included	Receptacle Housing	IP67 - Dust Tight, Waterproof	Flange	105 ░C	-55 °C	UL94 V-0	Thermoplastic	Keyed	Crimp	Black	16
TE Connectivity AMP Connectors 796275-2	17	16	16	For Male Pins	Unshielded	Backshell	Circular	Contacts Not Included	Receptacle Housing	IP67 - Dust Tight, Waterproof	Flange	105 ░C	-55 °C	UL94 V-0	Thermoplastic	Keyed	Crimp	Black	16
