IXYH85N120A4

Active

IXYS

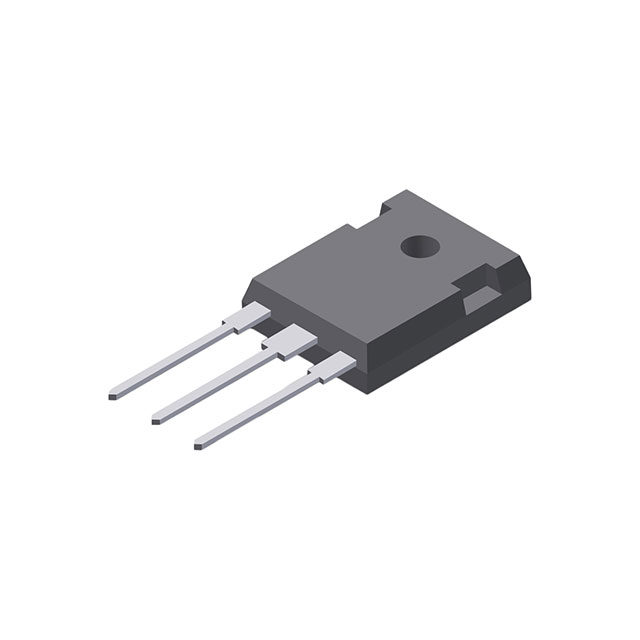

IGBT GENX4 1200V 85A TO247

Search across all available documentation for this part.

Active

IXYS

IGBT GENX4 1200V 85A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	IXYH85N120A4

Current - Collector Pulsed (Icm)	520 A
Gate Charge	200 nC
IGBT Type	PT
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	1150 W
Reverse Recovery Time (trr)	40 ns
Supplier Device Package	TO-247 (IXTH)
Switching Energy	8.3 mJ, 4.9 mJ
Td (on/off) @ 25°C	40 ns, 400 ns
Test Condition	15 V, 600 V, 60 A, 5 Ohm
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Supplier Device Package	Gate Charge	Td (on/off) @ 25°C	Current - Collector Pulsed (Icm)	Mounting Type	Reverse Recovery Time (trr)	Package / Case	Test Condition	Vce(on) (Max) @ Vge, Ic	Switching Energy	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
IXYS IXYH85N120A4	TO-247 (IXTH)	200 nC	40 ns 400 ns	520 A	Through Hole	40 ns	TO-247-3	5 Ohm 15 V 60 A 600 V	1.8 V	4.9 mJ 8.3 mJ	PT	1200 V	1150 W	-55 °C	175 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 12.17

General part information

IGBT PT 1200 V 300 A 1150 W Through Hole TO-247 (IXTH)
