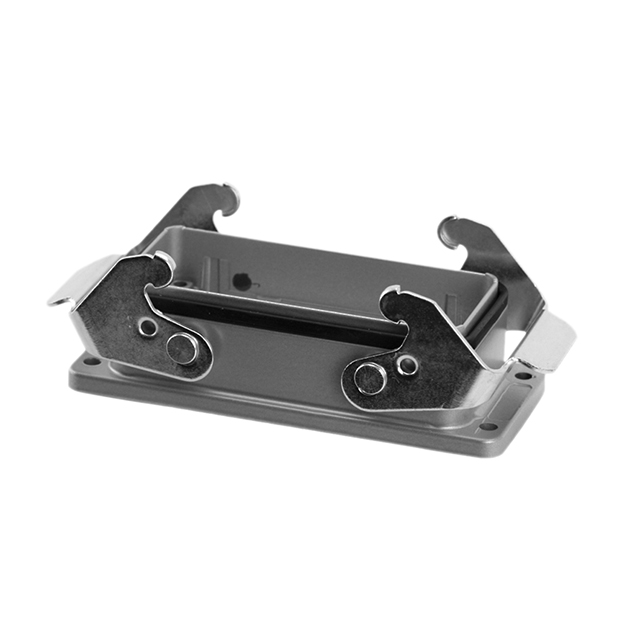

C146 67F016 000 8
ActiveAmphenol Tuchel Industrial
CONN BASE BOTTOM ENTRY SZE16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 67F016 000 8 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E16 |
| Size / Dimension [x] | 4.449 " |
| Size / Dimension [x] | 113 mm |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [z] | 1.122 in |
| Size / Dimension [z] | 28.5 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 30.68 | |
Description
General part information
C146 67F016 Series
Base - Panel Mount Connector Bottom Entry E16 IP67 - Dust Tight, Waterproof
