Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC16373APVG |
|---|---|
| Circuit | 8:8 |
| Current - Output High, Low [custom] | 24 mA |
| Current - Output High, Low [custom] | 24 mA |
| Delay Time - Propagation | 2.1 ns |
| Independent Circuits | 2 |
| Logic Type | D-Type Transparent Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Tri-State |

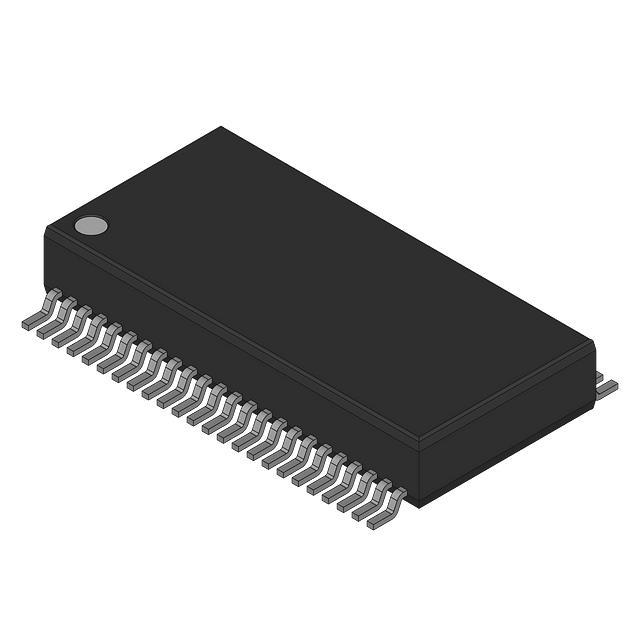

| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
74LVC16373 Series
74LVC16373 - 3.3V CMOS 16-BIT TR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Independent Circuits | Circuit | Output Type | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Package / Case | Logic Type | Delay Time - Propagation | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 74LVC16373APVGD-Type Transparent Latch 2 Channel 8:8 IC Tri-State 48-SSOP | -40 °C | 85 °C | Surface Mount | 2 | 8:8 | Tri-State | 24 mA | 24 mA | 48-BSSOP (0.295", 7.50mm Width) | D-Type Transparent Latch | 2.1 ns | 3.6 V | 2.3 V | 48-SSOP |
Description
General part information
74LVC16373 Series
D-Type Transparent Latch 2 Channel 8:8 IC Tri-State 48-SSOP
