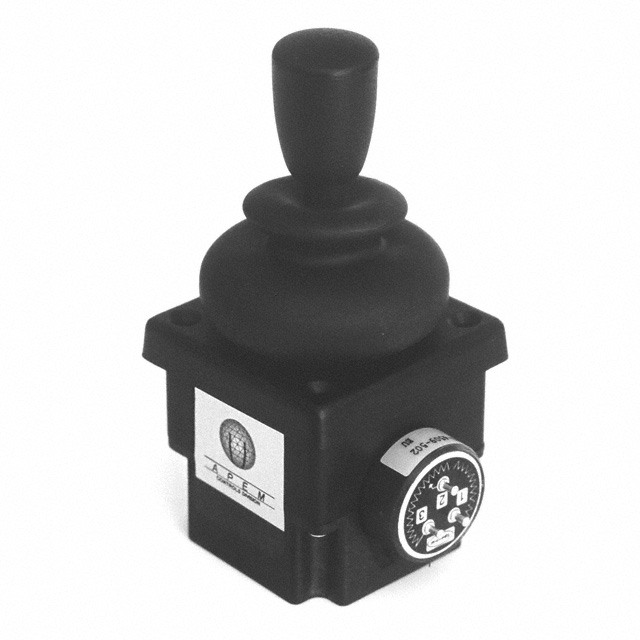

4R182S1E3200

Active

APEM

SWITCH JOYSTICK ANALOG

Search across all available documentation for this part.

Active

APEM

SWITCH JOYSTICK ANALOG

Technical Specifications

Parameters and characteristics for this part

Specification	4R182S1E3200

Actuator Type	Joystick
Electrical Life	5000000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Operating Force	133 gf
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Output	Analog (Resistive)
Panel Cutout Dimensions [diameter]	23 mm
Resistance	5 kOhms
Switch Function	2-Way Directional
Termination Style	Wire Leads
Type	Joystick, 1 - Axis

Part	Switch Function	Resistance	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Ingress Protection	Electrical Life	Mechanical Life	Type	Operating Force	Output	Actuator Type
APEM 4R182S1E3200	2-Way Directional	5 kOhms	Wire Leads	55 °C	-20 C	23 mm	IP65 - Dust Tight Water Resistant	5000000 Cycles	5000000 Cycles	Joystick 1 - Axis	133 gf	Analog (Resistive)	Joystick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Joystick, 1 - Axis Analog (Resistive) Output
