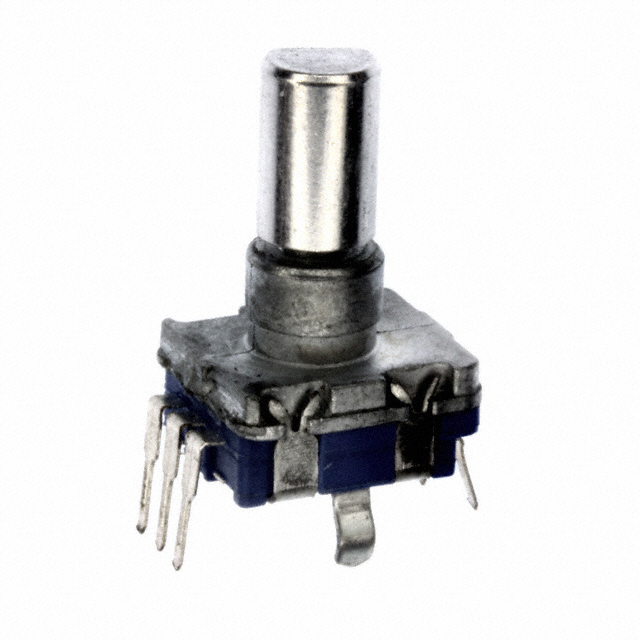

ACZ11BR4E-15FD1-20C

Active

CUI Devices

ROTARY ENCODER INCREMENT 20PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER INCREMENT 20PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Incremental 20 Quadrature (Incremental) Vertical

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ACZ11BR4E-15FD1-20C	ACZ11BR4 Series

Actuator Type	Flatted End	Flatted End, Knurled End
Actuator Type [diameter]	6 mm	6 mm
Built in Switch	True	True
Detent	True	True
Encoder Type	Incremental	Incremental
Orientation	Vertical	Vertical, Right Angle
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	20	12 - 20 pulses per revolution
Rotational Life (Cycles Min) [Min]	30K	30K
Termination Style	PC Pin	PC Pin

ROTARY ENCODER INCREMENT 12PPR

Part	Termination Style	Orientation	Rotational Life (Cycles Min) [Min]	Output Type	Pulses per Revolution	Actuator Type [diameter]	Actuator Type	Encoder Type
CUI Devices ACZ11BR4E-20FD1-12C	PC Pin	Vertical	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Flatted End	Incremental
CUI Devices ACZ11BR4E-20FA1-12C	PC Pin	Right Angle	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Flatted End	Incremental
CUI Devices ACZ11BR4E-15FD1-12C	PC Pin	Vertical	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Flatted End	Incremental
CUI Devices ACZ11BR4E-15KQA1-20C	PC Pin	Right Angle	30K	Quadrature (Incremental)	20	6 mm	Knurled End	Incremental
CUI Devices ACZ11BR4E-15KQD1-12C	PC Pin	Vertical	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Knurled End	Incremental
CUI Devices ACZ11BR4E-15KQA1-12C	PC Pin	Right Angle	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Knurled End	Incremental
CUI Devices ACZ11BR4E-15FD1-20C	PC Pin	Vertical	30K	Quadrature (Incremental)	20	6 mm	Flatted End	Incremental
CUI Devices ACZ11BR4E-15FA1-12C	PC Pin	Right Angle	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Flatted End	Incremental
CUI Devices ACZ11BR4E-20FA1-20C	PC Pin	Right Angle	30K	Quadrature (Incremental)	20	6 mm	Flatted End	Incremental
CUI Devices ACZ11BR4E-20KQD1-12C	PC Pin	Vertical	30K	Quadrature (Incremental)	12 pulses per revolution	6 mm	Knurled End	Incremental
