Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-MKI214V1 |
|---|---|
| Contents | Board(s) |
| Function | Pressure |
| Interconnect System | DIL24 |
| Platform | Professional MEMS Tool |
| Suggested Programming Environment | Unico |
| Type | Sensor |
| Utilized IC / Part | LPS33K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STEVAL-MKI214V1 Series

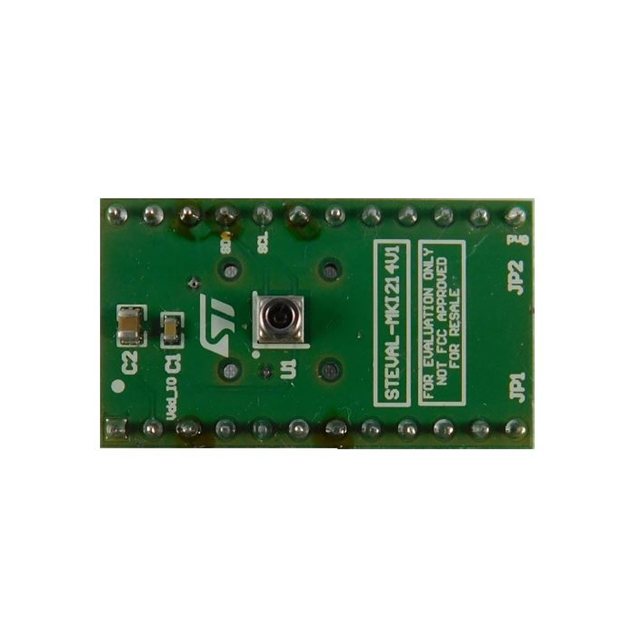

The STEVAL-MKI214V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LPS33K product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI214V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LPS33K pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard with high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
