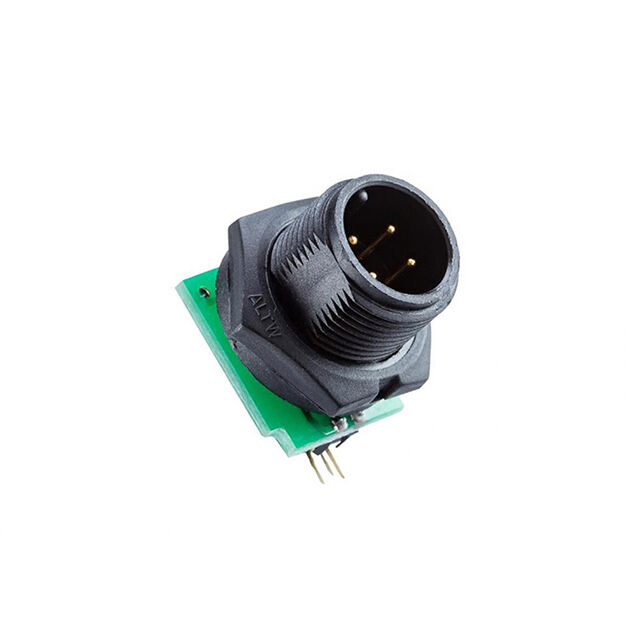

BD-04PMMR-LC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 04 PIN

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 04 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	BD-04PMMR-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Shielding	Contact Material	Mounting Type	Connector Type	Shell Material	Contact Finish - Mating	Primary Material	Ingress Protection	Number of Positions	Voltage Rating	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)	Insert Material	Features	Orientation
Amphenol LTW BD-04PMMR-LC7001	Unshielded	Copper Alloy	Through Hole Right Angle	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	Gold	Plastic	IP67 - Dust Tight Waterproof	4	250 VDC	Solder	Black	-40 °C	105 ░C	B	5 A	Polyamide (PA) Nylon Glass Filled	Board Guide	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 6.68

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
