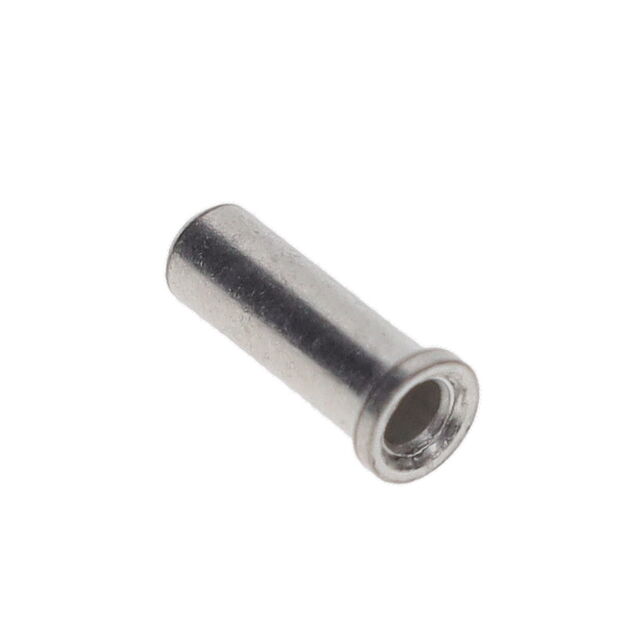

0351-0-15-80-34-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0351-0-15-80-34-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0351-0-15-80-34-80-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.31 mm
Flange Diameter [diameter]	0.091 in
Length - Overall [x]	5.74 mm
Length - Overall [x]	0.226 in
Mounting Hole Diameter [diameter]	1.91 mm
Mounting Hole Diameter [diameter]	0.075 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	0.2 in
Socket Depth	5.08 mm
Tail Type	No Tail
Termination	Solder

0351-0 Series

Part	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Tail Type	Contact Finish	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0351-0-15-01-34-14-10-0	0.81 mm 1.17 mm	0.046 in	0.032 "	1.63 mm	0.064 in	0.2 in	5.08 mm	Solder	1.91 mm	0.075 in	10 Áin	0.25 Ám	-55 °C	125 °C	2.31 mm	0.091 in	Beryllium Copper	No Tail	Gold	5.74 mm	0.226 in
Mill-Max Manufacturing Corp. 0351-0-15-80-34-14-10-0	0.81 mm 1.17 mm	0.046 in	0.032 "	1.63 mm	0.064 in	0.2 in	5.08 mm	Solder	1.91 mm	0.075 in	10 Áin	0.25 Ám	-55 °C	125 °C	2.31 mm	0.091 in	Beryllium Copper	No Tail	Gold	5.74 mm	0.226 in
Mill-Max Manufacturing Corp. 0351-0-15-01-34-01-10-0	0.81 mm 1.17 mm	0.046 in	0.032 "	1.63 mm	0.064 in	0.2 in	5.08 mm	Solder	1.91 mm	0.075 in	200 Áin	5.08 Ám	-55 °C	125 °C	2.31 mm	0.091 in	Beryllium Copper	No Tail	Tin-Lead	5.74 mm	0.226 in
Mill-Max Manufacturing Corp. 0351-0-15-80-34-27-10-0	0.81 mm 1.17 mm	0.046 in	0.032 "	1.63 mm	0.064 in	0.2 in	5.08 mm	Solder	1.91 mm	0.075 in	30 Áin	0.76 Ám	-55 °C	125 °C	2.31 mm	0.091 in	Beryllium Copper	No Tail	Gold	5.74 mm	0.226 in
Mill-Max Manufacturing Corp. 0351-0-15-80-34-80-10-0	0.81 mm 1.17 mm	0.046 in	0.032 "	1.63 mm	0.064 in	0.2 in	5.08 mm	Solder	1.91 mm	0.075 in	200 Áin	5.08 Ám	-55 °C	125 °C	2.31 mm	0.091 in	Beryllium Copper	No Tail	Tin	5.74 mm	0.226 in
Mill-Max Manufacturing Corp. 0351-0-15-15-34-14-10-0	0.81 mm 1.17 mm	0.046 in	0.032 "	1.63 mm	0.064 in	0.2 in	5.08 mm	Solder	1.91 mm	0.075 in	10 Áin	0.25 Ám	-55 °C	125 °C	2.31 mm	0.091 in	Beryllium Copper	No Tail	Gold	5.74 mm	0.226 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25
		10	$ 0.95
		25	$ 0.85
		50	$ 0.79
		100	$ 0.73
		250	$ 0.66
		500	$ 0.61
		1000	$ 0.57
		2500	$ 0.52

Description

General part information

0351-0 Series

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder
