DS18VP6LPQ
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, 3.5M, 100MA, PNP OUTPUT, 10V TO 30V, DS18 SERIES
DS18VP6LPQ
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, 3.5M, 100MA, PNP OUTPUT, 10V TO 30V, DS18 SERIES
Description
General part information
DS18VP6 Series

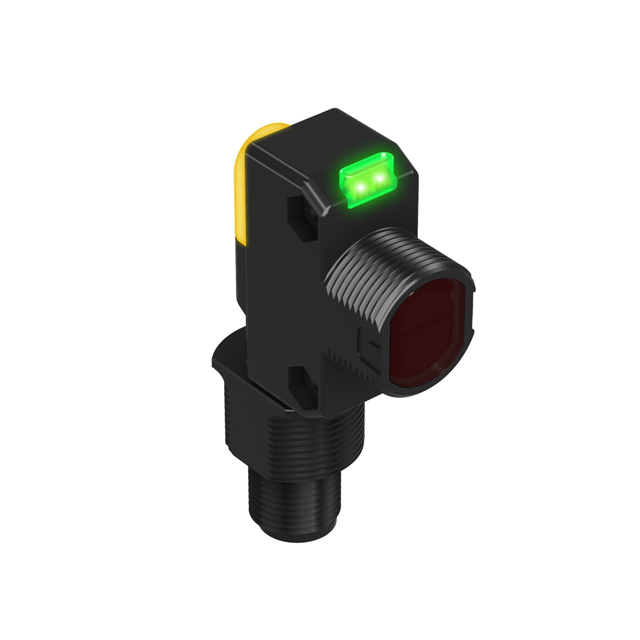

DS18VP6LPQ is a DS18 series miniature self-contained photoelectric sensor in a universal housing.
Technical Specifications
Parameters and characteristics for this part
| Specification | DS18VP6LPQ |
|---|---|
| Connection Method | M8, Connector |
| Ingress Protection | NEMA 6, IEC IP67, IEC, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Sensing Distance | 11.48 ' |
| Sensing Method | Polarized, Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
