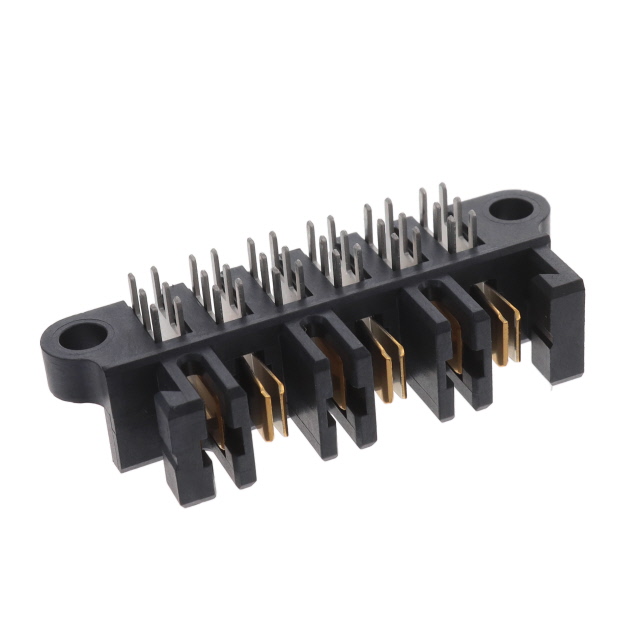

MPPT-06-01-01-L-RA-SD - MPPT-06-01-01-L-RA-SD

MPPT-06-01-01-L-RA-SD

Active
Samtec Inc.

CONN 6POS 5.00MM R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documents5.00 mm PowerStrip™/30 A Hermaphroditic Terminal/Socket StripMPPT Datasheet+1
MPPT-06-01-01-L-RA-SD - MPPT-06-01-01-L-RA-SD

MPPT-06-01-01-L-RA-SD

Active
Samtec Inc.

CONN 6POS 5.00MM R/A SLDR

Deep-Dive with AI

Documents5.00 mm PowerStrip™/30 A Hermaphroditic Terminal/Socket StripMPPT Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMPPT-06-01-01-L-RA-SD
ColorBlack
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialCopper Alloy
Current Rating (Amps)30 A
FeaturesFlange
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole, Right Angle
Number of Positions6
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]5 mm
Pitch [x]0.197 in
TerminationSolder
Voltage Rating848 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 40$ 5.65

Description

General part information

MPPT-06 Series

6 Position Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
