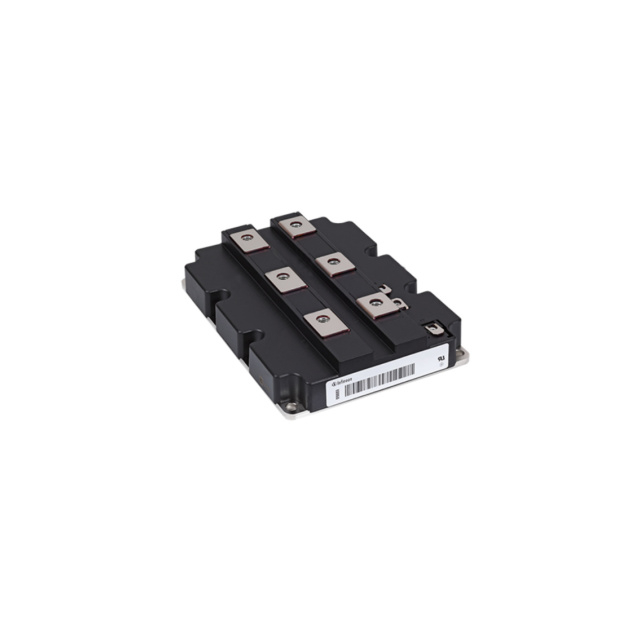

DZ3600S17K3B2NOSA1

NRND

Infineon Technologies

THE DZ3600S17K3_B2 IS A DIODES DIODE MODULE IN A IHM HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 1700 V AND 3600 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DZ3600S17K3B2NOSA1

NRND

Infineon Technologies

THE DZ3600S17K3_B2 IS A DIODES DIODE MODULE IN A IHM HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 1700 V AND 3600 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DZ3600S17K3B2NOSA1

Diode Configuration	3 Independent
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	A-IHM190-1
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1700 V
Voltage - Forward (Vf) (Max) @ If	2.2 V

DZ3600 Series

Part	Supplier Device Package	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed
Infineon Technologies DZ3600S17K3B2NOSA1	A-IHM190-1	Standard	Chassis Mount	2.2 V	125 °C	-40 °C	3 Independent	Module	1700 V	Standard Recovery >500ns	200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1251.80

Description

General part information

DZ3600 Series

1700 VIHM190mm Diode Module with Emitter Controlled 3 Diode - The best solution for your traction and industry applications. Predestined to be combined withIGBT3 products.
