R1500H033B-T1-JE

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 3.3V 500MA SOT89-5

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 3.3V 500MA SOT89-5

Technical Specifications

Parameters and characteristics for this part

Specification	R1500H033B-T1-JE

Control Features	Enable
Current - Output	500 mA
Current - Quiescent (Iq)	140 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

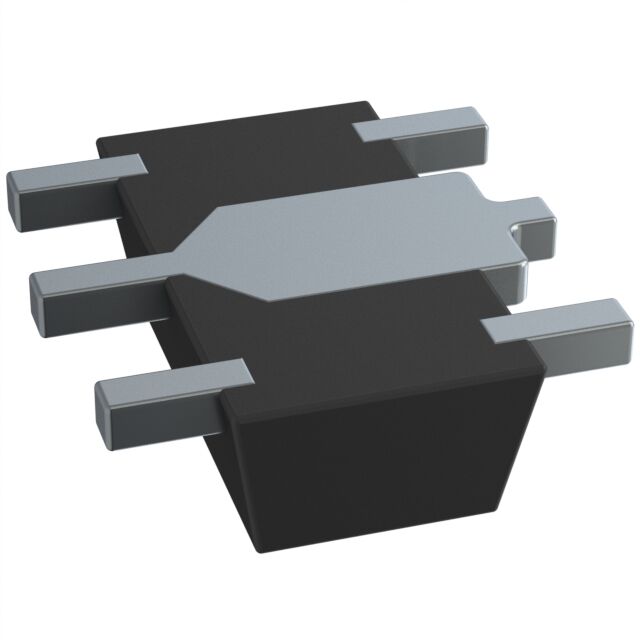

Package / Case	SOT-89-5/6
Protection Features	Over Temperature, Over Current, Short Circuit
Qualification	AEC-Q100
Supplier Device Package	SOT-89-5
Voltage - Input (Max) [Max]	24 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.225 V

Part	Package / Case	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Current - Output	Number of Regulators	Mounting Type	Voltage - Output (Min/Fixed)	Control Features	Grade	Supplier Device Package	Output Type	Protection Features	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	PSRR
Nisshinbo Micro Devices Inc R1500H033B-T1-JE	SOT-89-5/6	Positive	105 °C	-40 °C	AEC-Q100	500 mA	1	Surface Mount	3.3 V	Enable	Automotive	SOT-89-5	1.81 mOhm	Over Current Over Temperature Short Circuit	24 V	0.225 V	140 µA
Nisshinbo Micro Devices Inc R1500H098B-T1-FE	SOT-89-5/6	Positive	105 ░C	-40 °C		500 mA	1	Surface Mount	9.8 V	Enable		SOT-89-5	1.81 mOhm	Over Current Over Temperature Short Circuit	24 V	0.155 V	130 µA	50 dB
Nisshinbo Micro Devices Inc R1500H033B-T1-FE	SOT-89-5/6	Positive	105 ░C	-40 °C		500 mA	1	Surface Mount	3.3 V	Enable		SOT-89-5	1.81 mOhm	Over Current Over Temperature Short Circuit	24 V	0.225 V	130 µA	60 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-89-5
