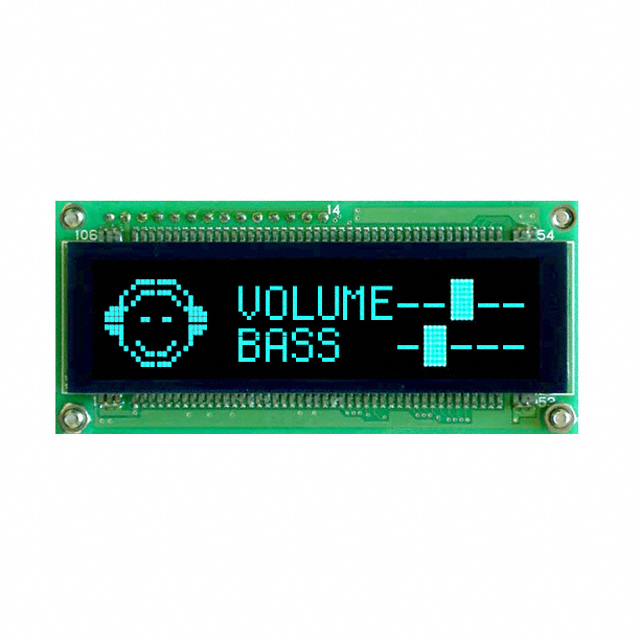

VK162-12

Active

Matrix Orbital

VFD DISPLAY 16X2 SER/I2C

Search across all available documentation for this part.

Active

Matrix Orbital

VFD DISPLAY 16X2 SER/I2C

Technical Specifications

Parameters and characteristics commom to parts in this series

DISPLAY VACUUM FLORESCENT 4X20

Part	Display Format [y]	Display Format [x]	Operating Temperature [Min]	Operating Temperature [Max]	Character Size [y]	Character Size [z]	Display Type	Viewing Area [x]	Viewing Area [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Interface	Format [x]	Format [y]	Character Size [x]	Voltage - Supply [Max]	Voltage - Supply [Min]
Matrix Orbital VK162-12-USB	2	16	-20 C	70 °C	4.76 mm	2.28 mm	Character	51.4 mm	11.4 mm	36 mm	27.67 mm	80 mm	I2C, USB
Matrix Orbital VK162-12-E	2	16	-40 °C	85 °C	2.46 mm		Character	51.4 mm	11.4 mm	36 mm	12.7 mm	80 mm	Serial	5 Dots	7	4.76 mm
Matrix Orbital VK162-12-V-E	2	16	-40 °C	85 °C	4.76 mm	2.28 mm	Character	51.4 mm	11.4 mm	36 mm	27.67 mm	80 mm	I2C				15 V	9 V
Matrix Orbital VK162-12-USB-E
Matrix Orbital VK162-12	2	16	-20 C	70 °C	2.46 mm		Character	51.4 mm	11.4 mm	36 mm	12.7 mm	80 mm	Serial	5 Dots	7	4.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.05

General part information

Vacuum Fluorescent Display (VFD) 16 x 2 Character Serial 80.00mm x 36.00mm x 12.70mm

Technical documentation and resources
