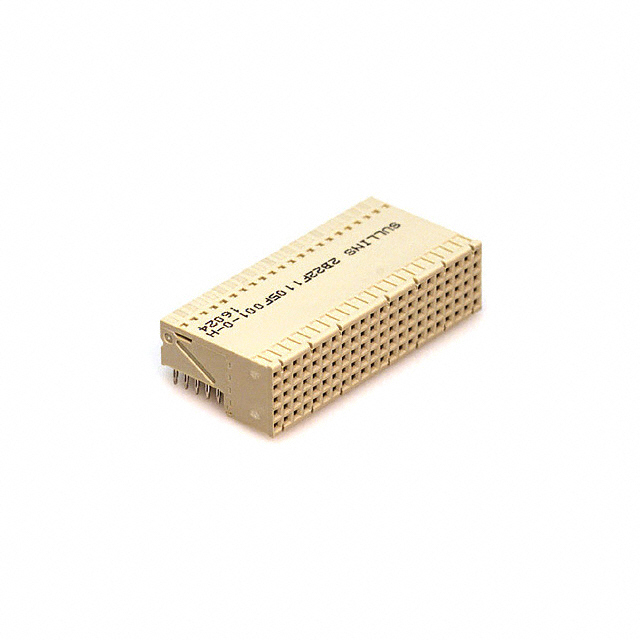

2B22F1105F001-0-H

Obsolete

Sullins Connector Solutions

CONN RECEPT 110POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN RECEPT 110POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

CONN RECEPT 110POS 2MM PRESS-FIT

Part	Connector Type	Number of Rows	Current Rating (Amps)	Connector Usage	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Connector Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]
Sullins Connector Solutions 2B22F1105F001-0-H	Receptacle, Female Sockets	5	1 A	CompactPCI	All	0.76 Ám	30 Áin	Press-Fit	0.079 in	2 mm	110 positions	Through Hole, Right Angle	B 22	Gold	125 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
