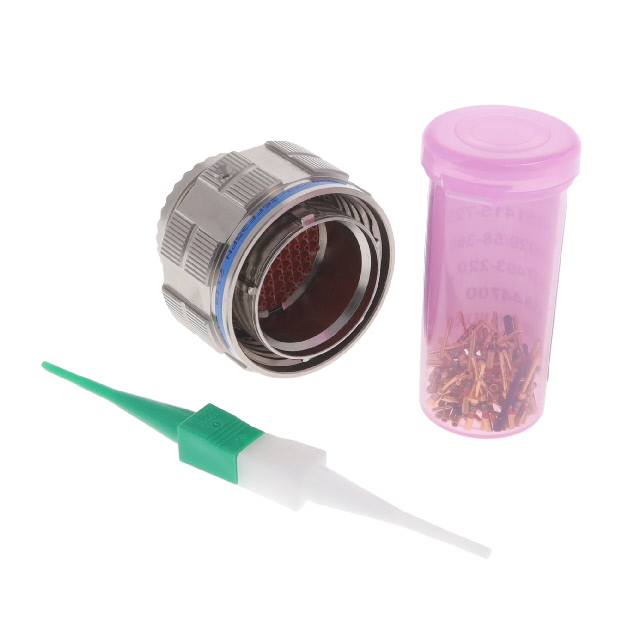

D38999/26FF35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 66POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FF35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 66POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FF35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	66
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	19
Shell Size, MIL	F
Shielding	Shielded
Termination	Crimp

D38999/26FF Series

Part	Features	Contact Shape	Orientation	Contact Size	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Ingress Protection	Housing Color	Mounting Type	Contact Type	Shell Finish	Qualification	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Type	Grade	Shell Size, MIL	Shielding	Primary Material	Contact Material	Insert Material	Applications	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Number of Positions	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Aerospace Operations D38999/26FF32AN	Coupling Nut Self Locking	Circular	N	20	Plug Housing	-65 ░C	200 °C	Aluminum	Environment Resistant	Silver	Free Hanging (In-Line)	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	19	32	Contacts Not Included	For Male Pins	Military	F	Shielded
Amphenol Aerospace Operations D38999/26FF32SC-LC	Coupling Nut Self Locking	Circular	C	20	Plug Housing	-65 ░C	200 °C	Aluminum	Environment Resistant	Silver	Free Hanging (In-Line)	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	19	32	Contacts Not Included	For Female Sockets	Military	F	Shielded
Amphenol Aerospace Operations D38999/26FF32SA	Self Locking		A		Female Sockets Plug	-65 ░C	200 °C	Aluminum	Environment Resistant		Free Hanging (In-Line)		Electroless Nickel	MIL-DTL-38999 Series III	19	32			Military	F	Shielded	Metal	Copper Alloy	Thermoplastic	Aerospace Aviation Marine Military	Silver	1.27 µm	50 µin	Gold	Crimp
Amphenol Aerospace Operations D38999/26FF35AC	Coupling Nut Self Locking	Circular	C		Plug Housing	-65 ░C	200 °C	Aluminum	Environment Resistant	Silver	Free Hanging (In-Line)	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	19	35	Contacts Not Included	For Male Pins	Military	F	Shielded	Metal		Thermoplastic							66	22D
Amphenol Aerospace Operations D38999/26FF32JN	Coupling Nut		N		Female Sockets Plug	-65 ░C	200 °C	Aluminum	Environment Resistant		Free Hanging (In-Line)		Electroless Nickel	MIL-DTL-38999 Series III	19	32			Military	F	Shielded	Metal	Copper Alloy		Aerospace Aviation Military	Silver	2.54 çm	100 çin	Gold	Crimp
Amphenol Aerospace Operations D38999/26FF28BN	Coupling Nut Self Locking	Circular	N		Plug Housing	-65 ░C	200 °C	Aluminum	Environment Resistant	Silver	Free Hanging (In-Line)	Crimp	Electroless Nickel	MIL-DTL-38999 Series III			Contacts Not Included	For Female Sockets	Military	F	Shielded										28	16 (2) 20 (26)	28	19
Amphenol Aerospace Operations D38999/26FF28JN-LC	Coupling Nut Self Locking	Circular	N		Plug Housing	-65 ░C	200 °C	Aluminum	Environment Resistant	Silver	Free Hanging (In-Line)	Crimp	Electroless Nickel	MIL-DTL-38999 Series III			Contacts Not Included	For Female Sockets	Military	F	Shielded										28	16 (2) 20 (26)	28	19
Amphenol Aerospace Operations D38999/26FF32PN	Coupling Nut		N		Male Pins Plug	-65 ░C	200 °C	Aluminum	Environment Resistant		Free Hanging (In-Line)		Electroless Nickel	MIL-DTL-38999 Series III	19	32			Military	F	Shielded	Metal	Copper Alloy		Aerospace Aviation Marine Military	Silver	1.27 µm	50 µin	Gold	Crimp
Amphenol Aerospace Operations D38999/26FF35PN	Self Locking		N		Male Pins Plug	-65 ░C	200 °C	Aluminum	Environment Resistant		Free Hanging (In-Line)		Electroless Nickel	MIL-DTL-38999 Series III	19	35			Military	F	Shielded	Metal	Copper Alloy	Thermoplastic	Aerospace Aviation Marine Military	Silver	1.27 µm	50 µin	Gold	Crimp	66
Amphenol Aerospace Operations D38999/26FF32BC	Coupling Nut Self Locking	Circular	C	20	Plug Housing	-65 ░C	200 °C	Aluminum	Environment Resistant	Silver	Free Hanging (In-Line)	Crimp	Electroless Nickel	MIL-DTL-38999 Series III	19	32	Contacts Not Included	For Female Sockets	Military	F	Shielded	Metal		Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 57.86
		10	$ 56.00
		25	$ 54.25
		50	$ 53.41
		100	$ 50.32
		250	$ 49.60
		500	$ 47.56
		1000	$ 46.30
	Bulk	1	$ 320.42
		1	$ 3264.32
		10	$ 297.01
		25	$ 276.94

Description

General part information

D38999/26FF Series

66 Position Circular Connector Plug, Male Pins Crimp
