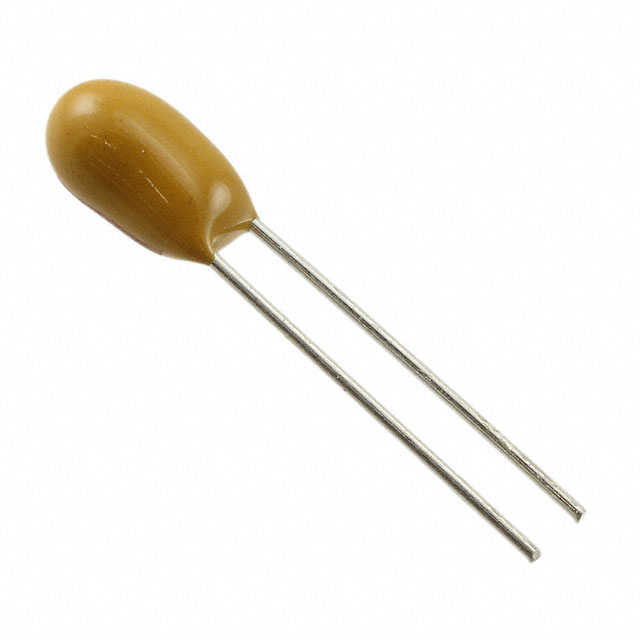

T350C475M025AT

Active

KEMET

CAP TANT 4.7UF 20% 25V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T350C475M025AT

T350C475M025AT

Active

KEMET

CAP TANT 4.7UF 20% 25V RADIAL

Deep-Dive with AI

DocumentsDatasheet T350C475M025AT

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T350C475M025AT

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	4 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	8.4 mm
Height - Seated (Max) [Max] [z]	0.331 "
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Type	Conformal Coated
Voltage - Rated	25 VDC

T350C Series

Part	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Capacitance	Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T350C475M025AS	25 VDC	5 mm	0.197 "	General Purpose	4 Ohm	0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	4.7 µF	Conformal Coated	20 %	-55 °C	125 °C
KEMET T350C106M010AT	10 V	5 mm	0.197 "	General Purpose		0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	10 µF	Conformal Coated	20 %	-55 °C	125 °C
KEMET T350C475K025AT7303	25 VDC	5 mm	0.197 "	General Purpose		0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	4.7 µF	Conformal Coated	10 %	-55 °C	125 °C
KEMET T350C225M035AT	35 V	5 mm	0.197 "	General Purpose		0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	2.2 µF	Conformal Coated	20 %	-55 °C	125 °C
KEMET T350C225K035AS	35 V	5 mm	0.197 "	General Purpose	5 Ohm	0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	2.2 µF	Conformal Coated	10 %	-55 °C	125 °C
KEMET T350C685K016AS	16 V	5 mm	0.197 "	General Purpose	4 Ohm	0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	6.8 ÁF	Conformal Coated	10 %	-55 °C	125 °C
KEMET T350C475M025AT	25 VDC	5 mm	0.197 "	General Purpose	4 Ohm	0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	4.7 µF	Conformal Coated	20 %	-55 °C	125 °C
KEMET T350C475K025AS	25 VDC	5 mm	0.197 "	General Purpose	4 Ohm	0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	4.7 µF	Conformal Coated	10 %	-55 °C	125 °C
KEMET T350C225K035AT7301	35 V	5 mm	0.197 "	General Purpose	5 Ohm	0.1 in	2.54 mm	Through Hole	8.4 mm	0.331 "	Radial	2.2 µF	Conformal Coated	10 %	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.11
		10	$ 1.63
		50	$ 1.49
		100	$ 1.24
		500	$ 1.09
