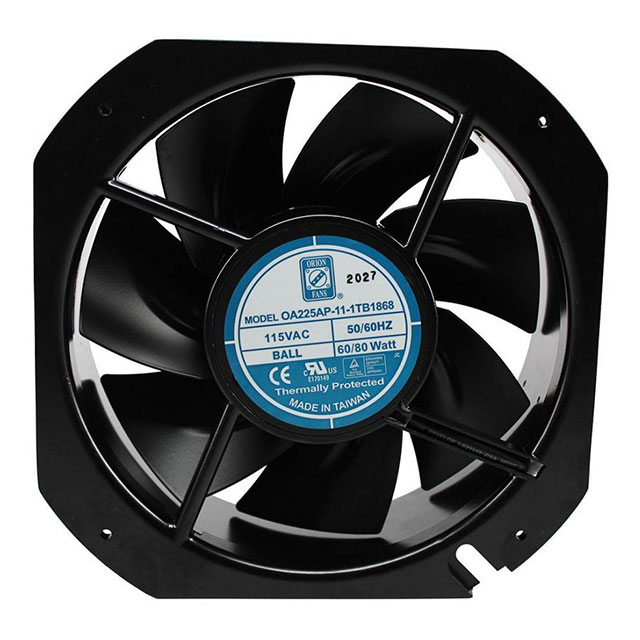

OA225AP-11-1WB1868
ActiveOrion Fans
AC AXIAL FAN, 115V, SQUARE, 225 MM, 80 MM, BALL BEARING, 620 CFM
Deep-Dive with AI
Search across all available documentation for this part.
OA225AP-11-1WB1868
ActiveOrion Fans
AC AXIAL FAN, 115V, SQUARE, 225 MM, 80 MM, BALL BEARING, 620 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA225AP-11-1WB1868 |
|---|---|
| Air Flow | 17.36 m³/min |
| Air Flow | 620 CFM |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 66 dB |
| Power (Watts) | 80 W |
| RPM | 3100 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 225 mm |
| Size / Dimension [z] | 225 mm |
| Static Pressure | 0.74 in H2O |
| Static Pressure | 184.3 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 115 VAC |
| Weight | 4.8 lbs |
| Weight | 2.2 kg |
| Width [y] | 80 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA225AP Series
Fan Tubeaxial 115VAC Square - 225mm L x 225mm H Ball 620.0 CFM (17.36m³/min) 2 Wire Leads
