TV50C800JB-G

Active

Comchip Technology

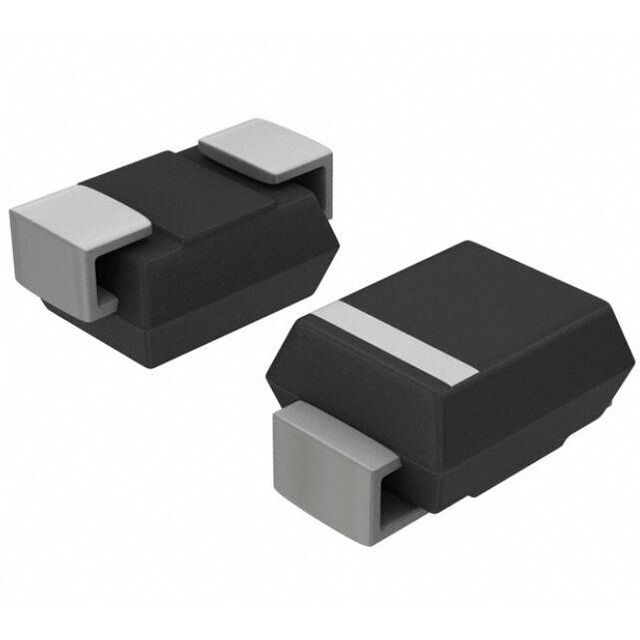

TVS DIODE 80VWM 129.6V DO214AB

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 80VWM 129.6V DO214AB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TV50C800JB-G	TV50C800 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	38.97 A	38.97 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SMC, DO-214AB	SMC, DO-214AB
Power - Peak Pulse	3000 W	3000 W
Power - Peak Pulse	3 kW	3 kW
Power Line Protection	False	False
Supplier Device Package	DO-214AB (SMC)	DO-214AB (SMC)
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	88.8 V	88.8 V
Voltage - Clamping (Max) @ Ipp	129.6 V	129.6 V
Voltage - Reverse Standoff (Typ)	80 V	80 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.95

TVS DIODE 80VWM 129.6VC DO214AB

Part	Power Line Protection	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Min]	Operating Temperature [Max]	Power - Peak Pulse	Power - Peak Pulse	Applications	Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Mounting Type	Unidirectional Channels [custom]	Package / Case	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Bidirectional Channels [custom]
Comchip Technology TV50C800J-G		129.6 V	-55 °C	150 °C	3000 W	3 kW	General Purpose	Zener	38.97 A	80 V	Surface Mount	1	DO-214AB, SMC	88.8 V	DO-214AB (SMC)
Comchip Technology TV50C800JB-G		129.6 V	-55 °C	150 °C	3000 W	3 kW	General Purpose	Zener	38.97 A	80 V	Surface Mount		DO-214AB, SMC	88.8 V	DO-214AB (SMC)	1

General part information

129.6V Clamp 38.97A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
