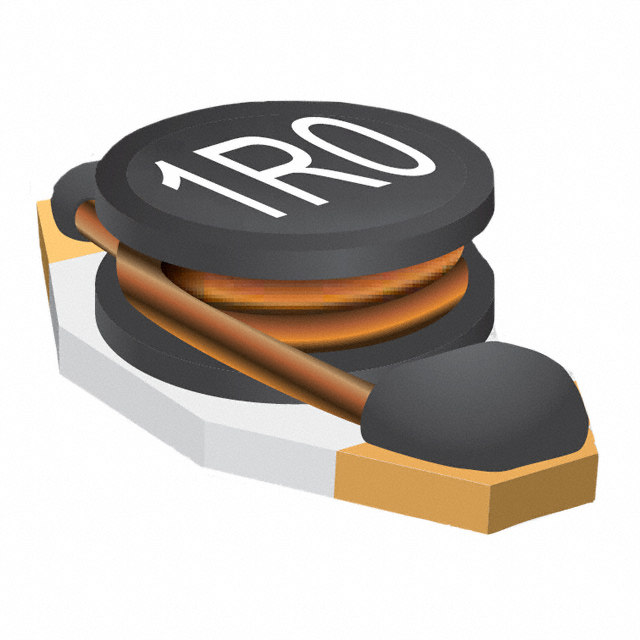

PM1608-470M-RC

Active

Bourns Inc.

FIXED IND 47UH 500MA 640MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM1608-470M-RC

Active

Bourns Inc.

FIXED IND 47UH 500MA 640MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM1608-470M-RC

Current - Saturation (Isat)	500 mA
Current Rating (Amps)	0.5 A
DC Resistance (DCR) [Max]	640 mOhm
Frequency - Self Resonant	14 MHz
Inductance	47 µH
Inductance Frequency - Test	2.52 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 15
Shielding	Unshielded
Size / Dimension [x]	6.6 mm
Size / Dimension [x]	0.26 in
Size / Dimension [y]	4.45 mm
Size / Dimension [y]	0.175 in
Tolerance	20 %
Type	Wirewound, Drum Core

PM1608 Series

Part	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Frequency - Self Resonant	Inductance	Type	Current - Saturation (Isat)	Q @ Freq	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Tolerance	Current Rating (Amps)	Mounting Type	Package / Case	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Bourns Inc. PM1608-1R5M-RC	Ferrite	125 °C	-40 °C	Unshielded	115 MHz	1.5 µH	Drum Core Wirewound	2.6 A	7.96 MHz 19	4.45 mm	0.175 in	6.6 mm	0.26 in	50 mOhm	20 %	2.8 A	Surface Mount	Nonstandard	7.96 MHz
Bourns Inc. PM1608-150M-RC	Ferrite	125 °C	-40 °C	Unshielded	30 MHz	15 µH	Drum Core Wirewound	900 mA	2.52 MHz 17	4.45 mm	0.175 in	6.6 mm	0.26 in		20 %	1 A	Surface Mount	Nonstandard	2.52 MHz	230 mOhm
Bourns Inc. PM1608-470M	Ferrite	85 °C	-40 °C	Unshielded		47 µH	Drum Core Wirewound	500 mA		4.45 mm	0.175 in	6.6 mm	0.26 in		20 %	0.5 A	Surface Mount	Nonstandard	100 kHz	640 mOhm
Bourns Inc. PM1608-680M-RC	Ferrite	125 °C	-40 °C	Unshielded	11 MHz	68 µH	Drum Core Wirewound	400 mA	2.52 MHz 18	4.45 mm	0.175 in	6.6 mm	0.26 in	860 mOhm	20 %	400 mA	Surface Mount	Nonstandard	2.52 MHz
Bourns Inc. PM1608-1R0M-RC	Ferrite	125 °C	-40 °C	Unshielded	130 MHz	1 µH	Drum Core Wirewound	2.9 A	7.96 MHz 20	4.45 mm	0.175 in	6.6 mm	0.26 in	50 mOhm	20 %	2.9 A	Surface Mount	Nonstandard	7.96 MHz
Bourns Inc. PM1608-151M-RC	Ferrite	125 °C	-40 °C	Unshielded	6 MHz	150 µH	Drum Core Wirewound	270 mA	41 796 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in		20 %	0.25 A	Surface Mount	Nonstandard	796 kHz	2 Ohm
Bourns Inc. PM1608-681M-RC	Ferrite	125 °C	-40 °C	Unshielded	3 MHz	680 µH	Drum Core Wirewound	140 mA	58 796 kHz	4.45 mm	0.175 in	6.6 mm	0.26 in		20 %	120 mA	Surface Mount	Nonstandard	796 kHz	9.2 Ohm
Bourns Inc. PM1608-331M	Ferrite	85 °C	-40 °C	Unshielded		330 µH	Drum Core Wirewound	180 mA		4.45 mm	0.175 in	6.6 mm	0.26 in		20 %	160 mA	Surface Mount	Nonstandard	100 kHz	3.8 Ohm
Bourns Inc. PM1608-680M	Ferrite	85 °C	-40 °C	Unshielded		68 µH	Drum Core Wirewound	400 mA		4.45 mm	0.175 in	6.6 mm	0.26 in	860 mOhm	20 %	400 mA	Surface Mount	Nonstandard	100 kHz
Bourns Inc. PM1608-470M-RC	Ferrite	125 °C	-40 °C	Unshielded	14 MHz	47 µH	Drum Core Wirewound	500 mA	2.52 MHz 15	4.45 mm	0.175 in	6.6 mm	0.26 in		20 %	0.5 A	Surface Mount	Nonstandard	2.52 MHz	640 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 1.28

Description

General part information

PM1608 Series

47 µH Unshielded Drum Core, Wirewound Inductor 500 mA 640mOhm Max Nonstandard
