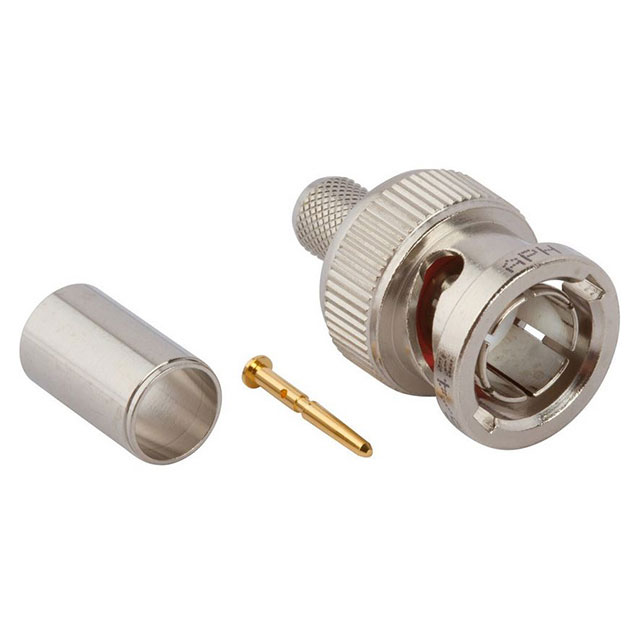

031-80104

AMPHENOL RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-80104

AMPHENOL RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-80104	031-80 Series

Body Finish	Nickel	Nickel
Body Material	Phosphor Bronze	Phosphor Bronze, Zinc Alloy, Zinc Die Cast
Cable Group	Belden 1505A, AT&T 734, 734A	1694A, Belden 1694, 9248, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B, Belden 1505A, AT&T 734, 734A, Belden 8281, 140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	3 - 4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Contact, 1 Connector
Includes	-	1 pcs
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

031-80 Series

CONN BNC PLUG STR 75 OHM CRIMP

Part	Connector Type	Housing Color	Center Contact Material	Number of Ports	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Voltage Rating	Fastening Type	Shield Termination	Insertion Loss	Impedance	Contact Termination	Center Contact Plating	Includes	Body Finish	Cable Group	Connector Style	Body Material	Dielectric Material	Mounting Type	Includes
AMPHENOL RF 031-80109	Male Pin, Plug	Silver	Brass	1	4 GHz	-65 ░C	165 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	1694A, 9248, Belden 1694	BNC	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)
AMPHENOL RF 031-80101	Male Pin, Plug	Silver	Brass	1	4 GHz	-65 ░C	165 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	BNC	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)
AMPHENOL RF 031-80104	Male Pin, Plug	Silver	Brass	1	4 GHz	-65 ░C	165 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	734A, AT&T 734, Belden 1505A	BNC	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)
AMPHENOL RF 031-80904	Male Pin, Plug	Silver	Brass	1	3 GHz	-40 °C	85 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	734A, AT&T 734, Belden 1505A	BNC	Zinc Alloy	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line), Right Angle
AMPHENOL RF 031-80107	Male Pin, Plug	Silver	Brass	1	4 GHz	-65 ░C	165 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold		Nickel	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	BNC	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs
AMPHENOL RF 031-80901	Male Pin, Plug	Silver	Brass	1	3 GHz	-40 °C	85 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	BNC	Zinc Die Cast	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line), Right Angle
AMPHENOL RF 031-80108	Male Pin, Plug	Silver	Brass	1	4 GHz	-65 ░C	165 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	Belden 8281	BNC	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)
AMPHENOL RF 031-80103	Male Pin, Plug	Silver	Brass	1	4 GHz	-65 ░C	165 °C	500	500 V	Bayonet Lock	Crimp	0.2 dB	75 Ohms	Crimp	Gold	1 Connector, 1 Contact, 1 Ferrule	Nickel	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	BNC	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.38

Description

General part information

031-80 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
