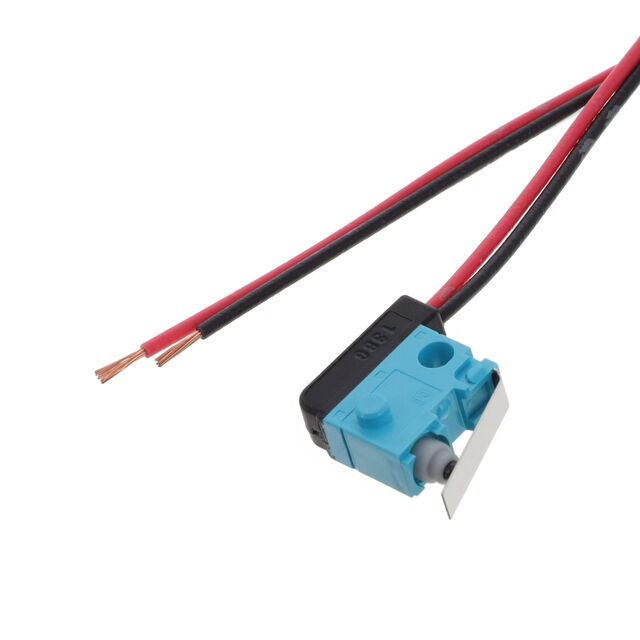

ASQ10227

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Switch Function	Current Rating (Amps)	Mounting Type	Ingress Protection	Electrical Life	Termination Style	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Operating Position	Operating Position	Actuator Type	Overtravel [x]	Overtravel [x]	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ASQ10228	0.11 in	2.8 mm	On-Mom	100 mA	Chassis Mount	IP67 - Dust Tight Waterproof	200000 Cycles	Wire Leads	153 gf	SPST-NC	85 °C	-40 °C	30 V	12 mm	0.472 in	Lever Simulated Roller
Panasonic Electric Works ASQ10230	0.087 in	2.2 mm	Off-Mom	100 mA	Chassis Mount	IP67 - Dust Tight Waterproof	200000 Cycles	Wire Leads	153 gf	SPST-NO	85 °C	-40 °C	30 V	8.4 mm	0.33 in	Round (Pin Plunger)
Panasonic Electric Works ASQ10220	0.087 in	2.2 mm	On-Mom	100 mA	Chassis Mount	IP67 - Dust Tight Waterproof	200000 Cycles	Wire Leads	153 gf	SPST-NC	85 °C	-40 °C	30 V	8.4 mm	0.33 in	Round (Pin Plunger)
Panasonic Electric Works ASQ10227			On-Mom	100 mA	Chassis Mount	IP67 - Dust Tight Waterproof	200000 Cycles	Wire Leads	173 gf	SPST-NC	85 °C	-40 °C	30 V			Lever Straight	2.6 mm	0.102 in	0.366 "	9.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NC Chassis Mount
