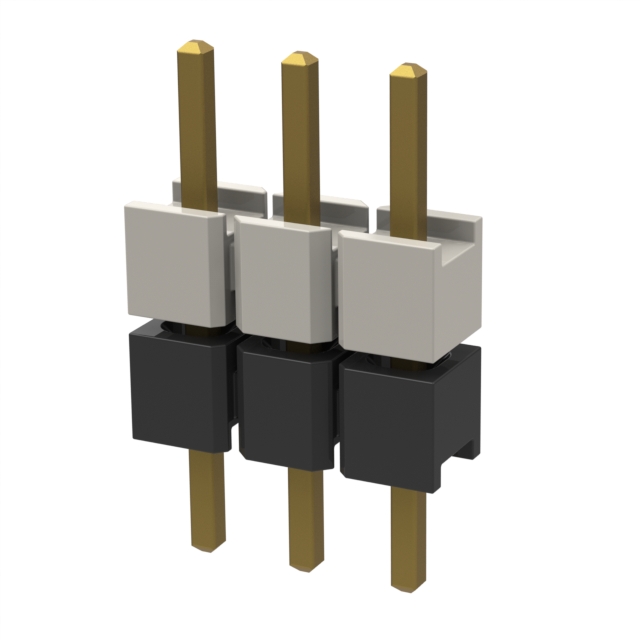

HW-03-07-G-S-200-105

Active

Samtec Inc.

CONN HDR 3POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 3POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	HW-03-07-G-S-200-105

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	0.125 in
Length - Post (Mating) [x]	3.175 mm
Length - Tail [x]	2.667 mm
Length - Tail [x]	0.105 in
Mounting Type	Through Hole
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Mounting Type	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows	Contact Finish - Post (Mating)	Color	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail [custom]	Length - Tail	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Row Spacing [x]	Row Spacing
Samtec Inc. HW-03-07-T-S-200-140-LL	Through Hole	Kinked Pin Solder	0.09 in	2.286 mm	10.922 mm	0.43 in	1	Tin	Black	2.54 mm	0.1 in	3.556 mm	0.14 in
Samtec Inc. HW-03-07-T-S-200-075	Through Hole	Solder	0.155 in	3.937 mm	10.922 mm	0.43 in	1	Tin	Black	2.54 mm	0.1 in	1.905 mm		0.075 in
Samtec Inc. HW-03-07-G-S-200-105	Through Hole	Solder	0.125 in	3.175 mm	10.922 mm	0.43 in	1	Gold	Black	2.54 mm	0.1 in				2.667 mm	0.105 in	0.25 Ám	10 Áin
Samtec Inc. HW-03-07-T-D-280-075	Through Hole	Solder	0.075 in	1.905 mm	10.922 mm	0.43 in	2	Tin	Black	2.54 mm	0.1 in	1.905 mm		0.075 in					7.112 mm	0.28 in	6	0.1 in	2.54 mm
Samtec Inc. HW-03-07-G-D-200-109	Through Hole	Solder	0.121 in	3.073 mm	10.922 mm	0.43 in	2	Gold	Black	2.54 mm	0.1 in	2.769 mm		0.109 in			0.25 Ám	10 Áin			6	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76

General part information

3 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
