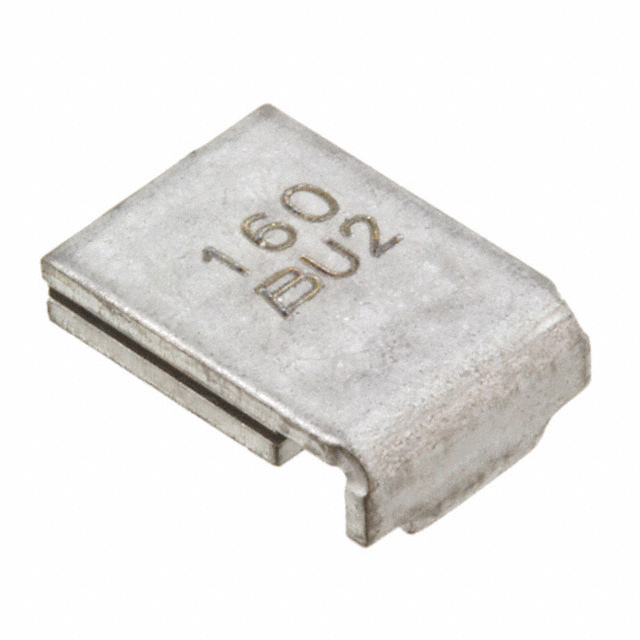

MF-SMHT160-2
ActiveBourns Inc.
PTC RESET FUSE 16V 1.6A 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
MF-SMHT160-2
ActiveBourns Inc.
PTC RESET FUSE 16V 1.6A 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MF-SMHT160-2 |
|---|---|
| Current - Hold (Ih) (Max) [Max] | 1.6 A |
| Current - Max [Max] | 100 A |
| Current - Trip (It) | 3.2 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD |
| Qualification | AEC-Q200 |
| Resistance - Initial (Ri) (Min) [Min] | 50 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 150 mOhms |
| Size / Dimension [x] | 9.5 mm |
| Size / Dimension [x] | 0.374 in |
| Size / Dimension [y] | 0.234 in |
| Size / Dimension [y] | 5.94 mm |
| Thickness (Max) [Max] | 0.118 " |
| Thickness (Max) [Max] | 3 mm |
| Type | Polymeric |
| Voltage - Max [Max] | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| 5 | $ 0.72 | |||
| 10 | $ 0.67 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 5 | $ 0.72 | |||
| 10 | $ 0.67 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.43 | |||
| Tape & Reel (TR) | 1500 | $ 0.32 | ||
| 3000 | $ 0.30 | |||
Description
General part information
MF-SMHT Series
Polymeric PTC Resettable Fuse 16V 1.6 A Ih Surface Mount 2-SMD
