FNP600-12G

Active

Bel Power Solutions

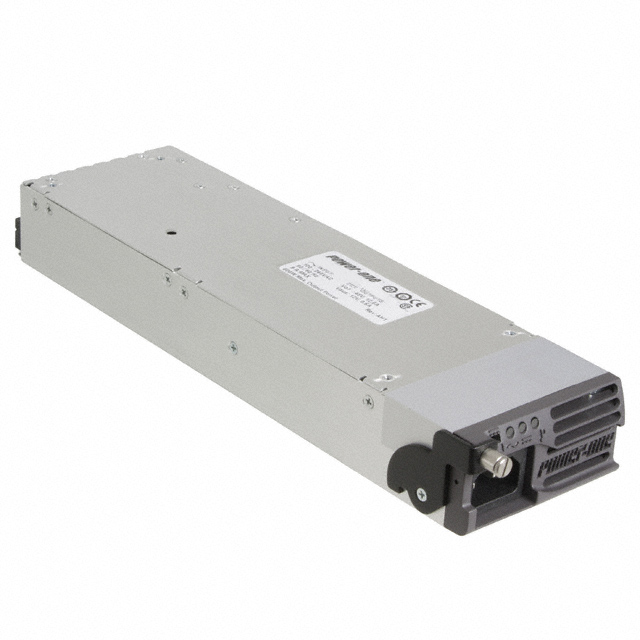

AC/DC CONVERTER 12V 600W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 600W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FNP600-12G	FNP600 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output 1	51 A	51 A
Efficiency	87 %	87 - 89 %
Features	Standby Output, PFC, Universal Input, Load Sharing, Adjustable Output, Remote Sense, I2C Interface	Standby Output, PFC, Universal Input, Load Sharing, Adjustable Output, Remote Sense, I2C Interface
Minimum Load Required	False	False
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	600 W	600 W
Size / Dimension [x]	298.2 mm	298.2 mm
Size / Dimension [x]	11.74 "	11.74 "
Size / Dimension [y]	1.6 "	1.6 "
Size / Dimension [y]	40.6 mm	40.6 mm
Size / Dimension [z]	3.3 "	3.3 "
Size / Dimension [z]	83.8 mm	83.8 mm
Type	Front End	Front End
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 48 V

AC/DC CONVERTER 12V 600W

Part	Voltage - Output 1	Efficiency	Minimum Load Required	Voltage - Isolation	Current - Output 1	Applications	Power (Watts)	Number of Outputs	Features	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]
Bel Power Solutions FNP600-12G	12 V	87 %		4000 V	51 A	ITE (Commercial)	600 W	1	Adjustable Output, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	Front End	90 VAC	264 VAC	Rack Mount	3.3 "	1.6 "	40.6 mm	83.8 mm	298.2 mm	11.74 "	70 °C	0 °C
Bel Power Solutions FNP600-48G	48 V	89 %		4000 V		ITE (Commercial)	600 W	1	Adjustable Output, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	Front End	90 VAC	264 VAC	Rack Mount	3.3 "	1.6 "	40.6 mm	83.8 mm	298.2 mm	11.74 "	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 781.25

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
