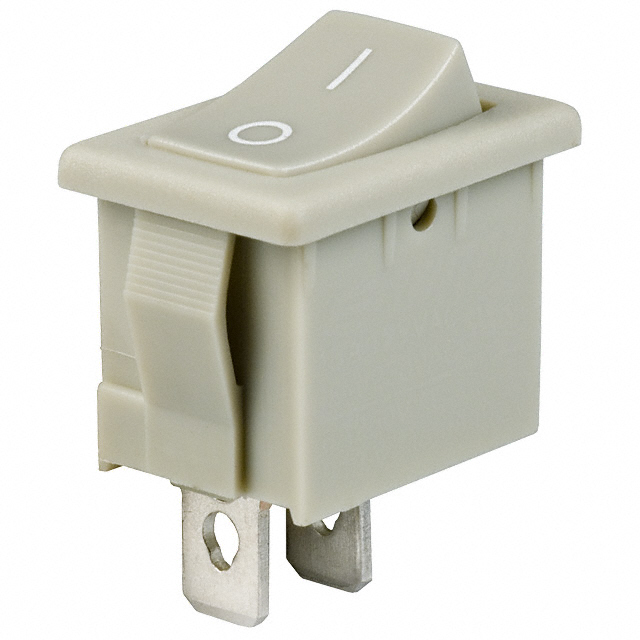

R1966AGRYGRYFF
ActiveE-Switch
SWITCH ROCKER SPST 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R1966AGRYGRYFF
ActiveE-Switch
SWITCH ROCKER SPST 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1966AGRYGRYFF |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.48 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.04 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.95 | |||
Description
General part information
R1966AGR Series
Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
