MH14BCK

Active

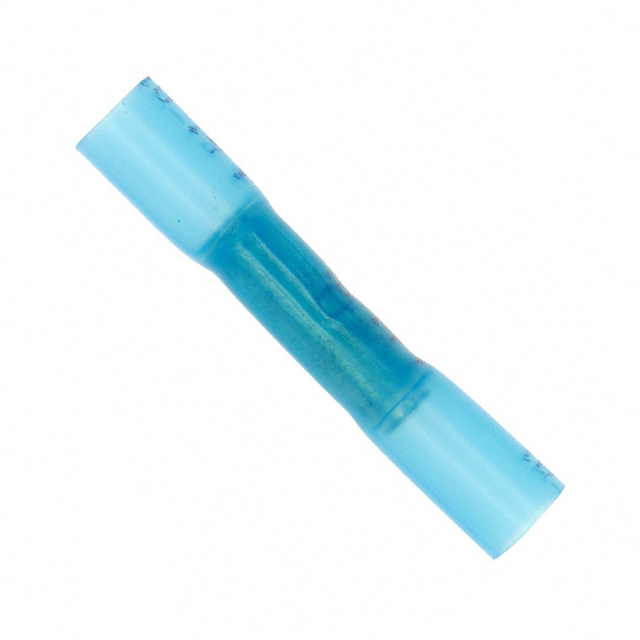

3M SCOTCHLOK BUTT CONNECTOR, HEAT SHRINK SEAMLESS MH14BCK, 16-14 AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMH18/14/10BC Datasheet Datasheet

MH14BCK

Active

3M SCOTCHLOK BUTT CONNECTOR, HEAT SHRINK SEAMLESS MH14BCK, 16-14 AWG

Deep-Dive with AI

DocumentsMH18/14/10BC Datasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.42
		10	$ 1.24
		25	$ 1.18
		50	$ 1.16
		100	$ 1.10
		250	$ 1.00
		500	$ 0.92
		1000	$ 0.79
		2500	$ 0.74
Newark	Each	250	$ 1.07
		500	$ 0.98
		1000	$ 0.91

Description

General part information

MH14 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 14-16 AWG Blue

Documents

Technical documentation and resources

MH18/14/10BC Datasheet

Datasheet

Specification	MH14BCK	MH14 Series

Color	Blue	Blue
Contact Finish	-	Tin
Contact Material	-	ETP, Copper
Features	-	Brazed Seam
Insulation	Fully Insulated Heat Shrink	Insulated with Heat Shrink, Fully Insulated Heat Shrink
Length - Overall	-	27.94 mm
Length - Overall	-	1 - 1.1 in
Length - Overall	-	25.4 mm
Length - Ring Center to Termination	-	0.12 in
Length - Ring Center to Termination	-	3.05 mm
Length - Termination	-	16.26 mm
Length - Termination	-	0.64 in
Length - Termination	-	14.73 mm
Length - Termination	-	0.58 in
Material - Insulation	-	Polyolefin
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	2	2
Stud/Tab Size	-	0.3125 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Terminal Type	Butt Splice, Inline, Individual Openings	Circular, Snap, Spring, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	0.25 - 0.56 in
Width - Outer Edges	-	6.35 - 14.22 mm
Width - Outer Edges	-	7.87 mm

Part

Mounting Type

Termination

Features

Terminal Type

Material - Insulation [custom]

Contact Material

Length - Overall [x]

Insulation

Width - Outer Edges [y]

Stud/Tab Size

Color

Contact Finish

Thickness

Width - Outer Edges

Stud/Tab Size

Length - Overall

Length - Ring Center to Termination [x]

Length - Termination [custom]

Length - Termination

Number of Wire Entries

MH14-516R/SK

Free Hanging (In-Line)

Crimp

Brazed Seam

Circular

Polyolefin

Copper, ETP

27.94 mm

1.1 in

Insulated with Heat Shrink

0.47 in

11.94 mm

0.3125 Stud

Blue

Tin

0.03 in

0.76 mm

MH14-8R/LK

Free Hanging (In-Line)

Crimp

Brazed Seam

Circular

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

0.31 in

Blue

Tin

0.03 in

0.76 mm

7.87 mm

8 Stud

25.4 mm

MH14-6FLX-BOTTLE

Free Hanging (In-Line)

Crimp

Brazed Seam

Snap, Spring

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

0.25 "

6.35 mm

6 Stud

Blue

Tin

25.4 mm

0.12 in

3.05 mm

16.26 mm

0.64 in

MH14-8FLK

Free Hanging (In-Line)

Crimp

Brazed Seam

Snap, Spring

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

Blue

Tin

8 Stud

25.4 mm

0.12 in

3.05 mm

14.73 mm

0.58 in

MH14-10R/LX-BOTTLE

Free Hanging (In-Line)

Crimp

Brazed Seam

Circular

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

0.31 in

10 Stud

Blue

Tin

0.03 in

0.76 mm

7.87 mm

25.4 mm

MH14BCK

Crimp

Butt Splice, Individual Openings, Inline

Fully Insulated Heat Shrink

Blue

MH14-6FLK

Free Hanging (In-Line)

Crimp

Brazed Seam

Snap, Spring

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

0.25 "

6.35 mm

6 Stud

Blue

Tin

25.4 mm

0.12 in

3.05 mm

16.26 mm

0.64 in

MH14-8FLX-BOTTLE

Free Hanging (In-Line)

Crimp

Brazed Seam

Snap, Spring

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

Blue

Tin

8 Stud

25.4 mm

0.12 in

3.05 mm

14.73 mm

0.58 in

MH14-8R/LX-BOTTLE

Free Hanging (In-Line)

Crimp

Brazed Seam

Circular

Polyolefin

Copper, ETP

1 in

Insulated with Heat Shrink

0.31 in

Blue

Tin

0.03 in

0.76 mm

7.87 mm

8 Stud

25.4 mm

MH14-38RK

Free Hanging (In-Line)

Crimp

Brazed Seam

Circular

Polyolefin

Copper, ETP

27.94 mm

1.1 in

Insulated with Heat Shrink

0.56 in

14.22 mm

Blue

Tin

0.03 in

0.76 mm

3/8 Stud

Part	Mounting Type	Termination	Features	Terminal Type	Material - Insulation [custom]	Contact Material	Length - Overall [x]	Length - Overall [x]	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Color	Contact Finish	Thickness	Thickness	Width - Outer Edges	Stud/Tab Size	Length - Overall	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [custom]	Length - Termination [custom]	Length - Termination	Length - Termination	Number of Wire Entries
3M MH14-516R/SK	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP	27.94 mm	1.1 in	Insulated with Heat Shrink	0.47 in	11.94 mm	0.3125 Stud	Blue	Tin	0.03 in	0.76 mm
3M MH14-8R/LK	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.31 in			Blue	Tin	0.03 in	0.76 mm	7.87 mm	8 Stud	25.4 mm
3M MH14-6FLX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.25 "	6.35 mm	6 Stud	Blue	Tin					25.4 mm	0.12 in	3.05 mm	16.26 mm	0.64 in
3M MH14-8FLK	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink				Blue	Tin				8 Stud	25.4 mm	0.12 in	3.05 mm			14.73 mm	0.58 in
3M MH14-10R/LX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.31 in		10 Stud	Blue	Tin	0.03 in	0.76 mm	7.87 mm		25.4 mm
3M MH14BCK		Crimp		Butt Splice, Individual Openings, Inline					Fully Insulated Heat Shrink				Blue													2
3M MH14-6FLK	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.25 "	6.35 mm	6 Stud	Blue	Tin					25.4 mm	0.12 in	3.05 mm	16.26 mm	0.64 in
3M MH14-8FLX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink				Blue	Tin				8 Stud	25.4 mm	0.12 in	3.05 mm			14.73 mm	0.58 in
3M MH14-8R/LX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.31 in			Blue	Tin	0.03 in	0.76 mm	7.87 mm	8 Stud	25.4 mm
3M MH14-38RK	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP	27.94 mm	1.1 in	Insulated with Heat Shrink	0.56 in	14.22 mm		Blue	Tin	0.03 in	0.76 mm		3/8 Stud
