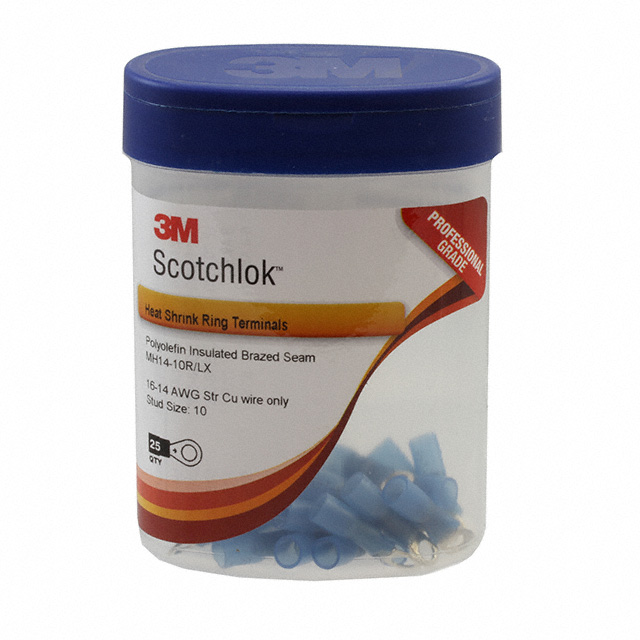

MH14-10R/LX-BOTTLE

Active

CONN RING CIRC 14-16AWG #10 25PC

Deep-Dive with AI

DocumentsMH18-6R-MH10-38R Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MH14-10R/LX-BOTTLE	MH14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated with Heat Shrink	Insulated with Heat Shrink, Fully Insulated Heat Shrink
Length - Overall	25.4 mm	25.4 mm
Length - Overall	-	27.94 mm
Length - Overall [x]	1 in	1 - 1.1 in
Length - Ring Center to Termination	-	0.12 in
Length - Ring Center to Termination	-	3.05 mm
Length - Termination	-	16.26 mm
Length - Termination	-	0.64 in
Length - Termination	-	14.73 mm
Length - Termination	-	0.58 in
Material - Insulation [custom]	Polyolefin	Polyolefin
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	10 Stud	0.3125 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Terminal Type	Circular	Circular, Snap, Spring, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	7.87 mm	7.87 mm
Width - Outer Edges	-	6.35 - 14.22 mm
Width - Outer Edges [y]	0.31 in	0.25 - 0.56 in

MH14 Series

BRAZED SEAM RING TONGUE HEAT SHRINK TERMINAL (BULK)

Part	Mounting Type	Termination	Features	Terminal Type	Material - Insulation [custom]	Contact Material	Length - Overall [x]	Length - Overall [x]	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Color	Contact Finish	Thickness	Thickness	Width - Outer Edges	Stud/Tab Size	Length - Overall	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [custom]	Length - Termination [custom]	Length - Termination	Length - Termination	Number of Wire Entries
3M MH14-516R/SK	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP	27.94 mm	1.1 in	Insulated with Heat Shrink	0.47 in	11.94 mm	0.3125 Stud	Blue	Tin	0.03 in	0.76 mm
3M MH14-8R/LK	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.31 in			Blue	Tin	0.03 in	0.76 mm	7.87 mm	8 Stud	25.4 mm
3M MH14-6FLX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.25 "	6.35 mm	6 Stud	Blue	Tin					25.4 mm	0.12 in	3.05 mm	16.26 mm	0.64 in
3M MH14-8FLK	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink				Blue	Tin				8 Stud	25.4 mm	0.12 in	3.05 mm			14.73 mm	0.58 in
3M MH14-10R/LX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.31 in		10 Stud	Blue	Tin	0.03 in	0.76 mm	7.87 mm		25.4 mm
3M MH14BCK		Crimp		Butt Splice, Individual Openings, Inline					Fully Insulated Heat Shrink				Blue													2
3M MH14-6FLK	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.25 "	6.35 mm	6 Stud	Blue	Tin					25.4 mm	0.12 in	3.05 mm	16.26 mm	0.64 in
3M MH14-8FLX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Snap, Spring	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink				Blue	Tin				8 Stud	25.4 mm	0.12 in	3.05 mm			14.73 mm	0.58 in
3M MH14-8R/LX-BOTTLE	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP		1 in	Insulated with Heat Shrink	0.31 in			Blue	Tin	0.03 in	0.76 mm	7.87 mm	8 Stud	25.4 mm
3M MH14-38RK	Free Hanging (In-Line)	Crimp	Brazed Seam	Circular	Polyolefin	Copper, ETP	27.94 mm	1.1 in	Insulated with Heat Shrink	0.56 in	14.22 mm		Blue	Tin	0.03 in	0.76 mm		3/8 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.05

Description

General part information

MH14 Series

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
