90B10ST

Active

Grayhill Inc.

10BIT SPST 24V 25MA PLUGIN DIP SWITCHES ROHS

Search across all available documentation for this part.

Active

Grayhill Inc.

10BIT SPST 24V 25MA PLUGIN DIP SWITCHES ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

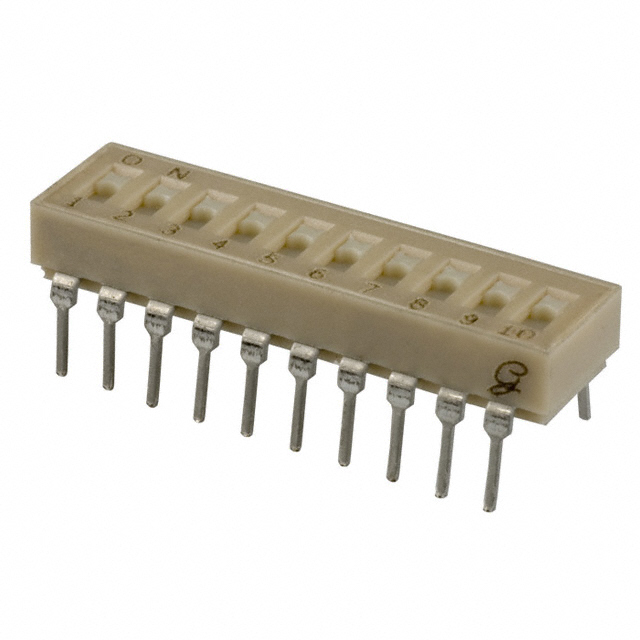

Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

Specification	90B10ST	90B10 Series

Actuator Level	Flush, Recessed	Flush, Recessed
Actuator Type	Slide (Standard)	Slide (Standard)
Body Material	Thermoplastic	Thermoplastic
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	25 mA	25 mA
Electrical Life	2000 Steps	2000 Steps
Features	Tape Seal	Position Identification Line, Tape Seal
Length	27.18 mm	27.18 mm
Length	1.07 in	1.07 in
Mechanical Life	2000 Cycles	2000 Cycles
Mounting Type	Through Hole	Through Hole
Number of Positions	10	10
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	True	True

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Number of Positions	Washable	Current Rating (Amps)	Body Material	Electrical Life	Voltage Rating	Actuator Type	Contact Finish	Mechanical Life	Contact Material	Length	Length	Actuator Level	Features	Circuit
Grayhill Inc. 90B10SLT	85 °C	-40 °C	PC Pin	0.1 in	Full	2.54 mm	Through Hole	10		25 mA	Thermoplastic	2000 Steps	24 VDC	Slide (Standard)	Gold	2000 Cycles	Copper Alloy	27.18 mm	1.07 in	Flush, Recessed	Position Identification Line, Tape Seal	SPST
Grayhill Inc. 90B10ST	85 °C	-40 °C	PC Pin	0.1 in	Full	2.54 mm	Through Hole	10		25 mA	Thermoplastic	2000 Steps	24 VDC	Slide (Standard)	Gold	2000 Cycles	Copper Alloy	27.18 mm	1.07 in	Flush, Recessed	Tape Seal	SPST
