MR4A08BUYS45

Active

Everspin Technologies Inc.

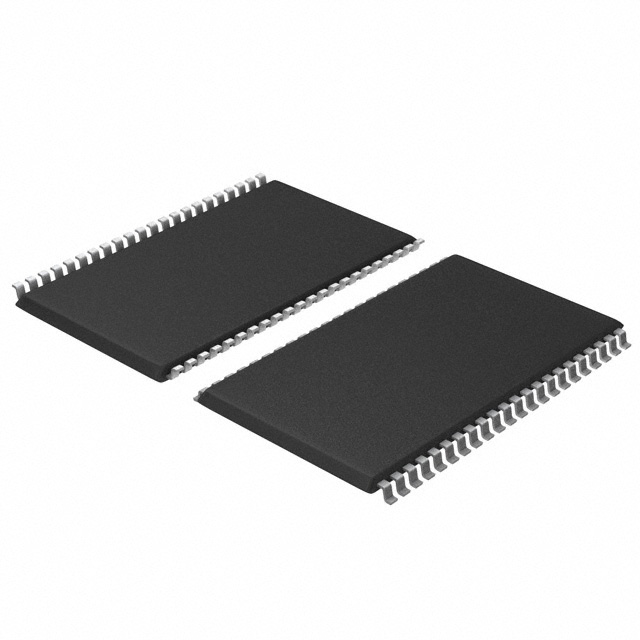

IC RAM 16MBIT PARALLEL 44TSOP2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MR4A08BUYS45

Active

Everspin Technologies Inc.

IC RAM 16MBIT PARALLEL 44TSOP2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MR4A08 Series

MRAM (Magnetoresistive RAM) Memory IC 16Mbit Parallel 45 ns 44-TSOP2

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MR4A08BUYS45	MR4A08 Series

Access Time	45 ns	35 - 45 ns
Memory Format	RAM	RAM
Memory Interface	Parallel	Parallel
Memory Organization	2 M	2 M
Memory Size	16 Mb	16 Mb
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	70 - 125 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	10.16 mm	10.16 mm
Package / Case	10.16 mm	10.16 mm
Package / Case	44-TSOP	44-TSOP, 48-LFBGA
Supplier Device Package	44-TSOP2	44-TSOP2, 48-FBGA (10x10)
Technology	MRAM (Magnetoresistive RAM)	MRAM (Magnetoresistive RAM)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V
Write Cycle Time - Word, Page	-	35 ns
Write Cycle Time - Word, Page [custom]	45 ns	45 ns
Write Cycle Time - Word, Page [custom]	45 ns	45 ns

MR4A08 Series

IC RAM 16MBIT PARALLEL 44TSOP2

Part	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Organization	Access Time	Technology	Mounting Type	Memory Type	Memory Format	Memory Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case	Package / Case	Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Write Cycle Time - Word, Page
Everspin Technologies Inc. MR4A08BUYS45R	45 ns	45 ns	2 M	45 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V	10.16 mm	10.16 mm	44-TSOP	16 Mb	-40 °C	125 °C	44-TSOP2
Everspin Technologies Inc. MR4A08BCMA35R			2 M	35 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V			48-LFBGA	16 Mb	-40 °C	85 °C	48-FBGA (10x10)	35 ns
Everspin Technologies Inc. MR4A08BYS35			2 M	35 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V	10.16 mm	10.16 mm	44-TSOP	16 Mb	0 °C	70 °C	44-TSOP2	35 ns
Everspin Technologies Inc. MR4A08BCYS35			2 M	35 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V	10.16 mm	10.16 mm	44-TSOP	16 Mb	-40 °C	85 °C	44-TSOP2	35 ns
Everspin Technologies Inc. MR4A08BMA35			2 M	35 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V			48-LFBGA	16 Mb	0 °C	70 °C	48-FBGA (10x10)	35 ns
Everspin Technologies Inc. MR4A08BYS35R			2 M	35 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V	10.16 mm	10.16 mm	44-TSOP	16 Mb	0 °C	70 °C	44-TSOP2	35 ns
Everspin Technologies Inc. MR4A08BUYS45	45 ns	45 ns	2 M	45 ns	MRAM (Magnetoresistive RAM)	Surface Mount	Non-Volatile	RAM	Parallel	3.6 V	3 V	10.16 mm	10.16 mm	44-TSOP	16 Mb	-40 °C	125 °C	44-TSOP2
