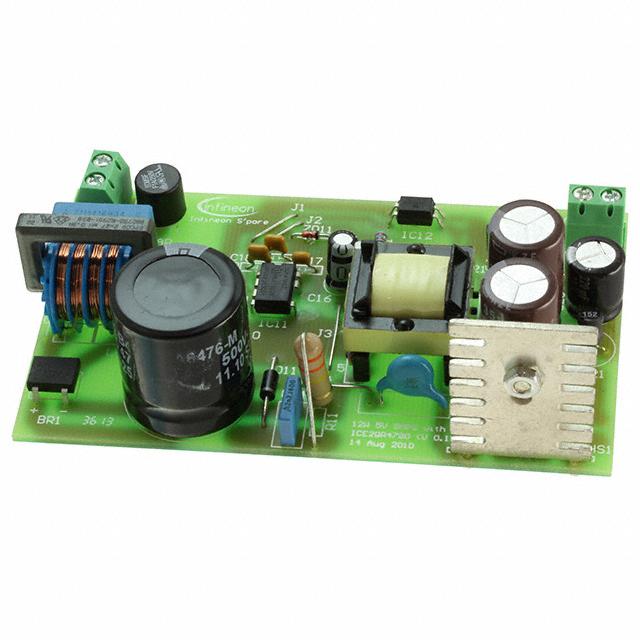

EVALQRCICE2QR4780ZTOBO1
ActiveInfineon Technologies
12W SMPS EVALUATION BOARD USING
Deep-Dive with AI
Search across all available documentation for this part.
EVALQRCICE2QR4780ZTOBO1
ActiveInfineon Technologies
12W SMPS EVALUATION BOARD USING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALQRCICE2QR4780ZTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Frequency - Switching | 100 kHz |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 12 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ICE2QR4780Z |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.12 | |
Description
General part information
EVALQRCICE2 Series
ICE2QR4780Z CoolMOS™, CoolSET™-Q1 AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
