438-041-500-112

Active

EDAC Inc.

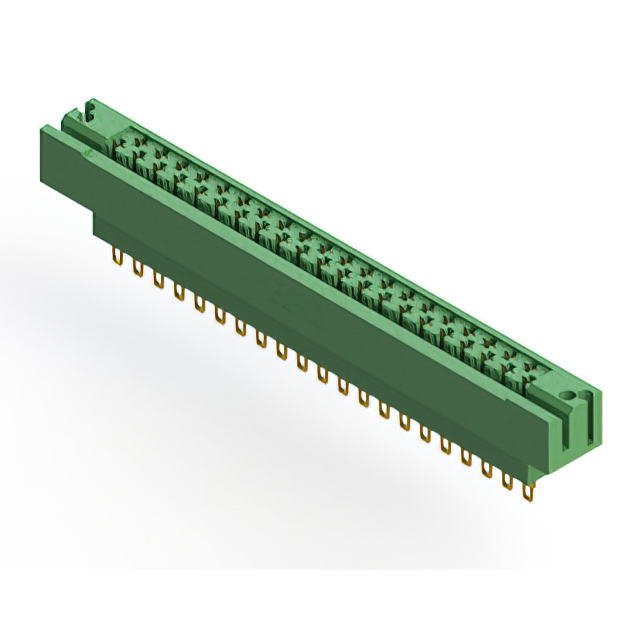

CARD EDGE CONNECTOR, 41 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, SOLDER TERMINAL, HOLE .128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

438-041-500-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, 41 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, SOLDER TERMINAL, HOLE .128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	438-041-500-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	41
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder Eyelet(s)
Termination Rows	2

438-041 Series

Part	Card Thickness	Card Thickness	Flange Feature	Flange Feature	Pitch [x]	Pitch [x]	Note	Material Flammability Rating	Number of Positions	Card Type	Color	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Material	Termination	Number of Rows	Gender	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
EDAC Inc. 438-041-000-122	0.093 in	2.36 mm	3.25 mm	0.128 in	0.2 in	5.08 mm	Contacts Not Included	UL94 V-0	41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C
EDAC Inc. 438-041-520-112	0.062 in	1.57 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Solder	2	Female	2	10 Áin	0.25 Ám	Gold
EDAC Inc. 438-041-000-112	0.062 in	1.57 mm	3.25 mm	0.128 in	0.2 in	5.08 mm	Contacts Not Included	UL94 V-0	41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C
EDAC Inc. 438-041-520-122	0.093 in	2.36 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Solder	2	Female	2	10 Áin	0.25 Ám	Gold
EDAC Inc. 438-041-500-122	0.093 in	2.36 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Solder Eyelet(s)	2	Female	2	10 Áin	0.25 Ám	Gold
EDAC Inc. 438-041-500-112	0.062 in	1.57 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Solder Eyelet(s)	2	Female	2	10 Áin	0.25 Ám	Gold
EDAC Inc. 438-041-541-122	0.093 in	2.36 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Wire Wrap	2	Female	2	10 Áin	0.25 Ám	Gold
EDAC Inc. 438-041-540-112	0.062 in	1.57 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Wire Wrap	2	Female	2	10 Áin	0.25 Ám	Gold
EDAC Inc. 438-041-542-112	0.062 in	1.57 mm	3.25 mm	0.128 in	0.2 in	5.08 mm			41	Non Specified - Dual Edge	Green	Diallyl Phthalate (DAP)	125 °C	-65 ░C	Panel Mount Through Hole	Copper Alloy	Wire Wrap	2	Female	2	10 Áin	0.25 Ám	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 33.08

Description

General part information

438-041 Series

41 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
