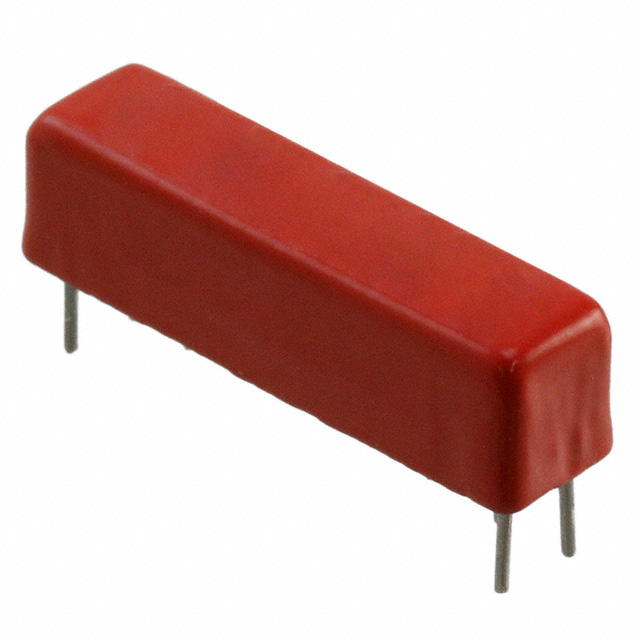

2274-12-021

Active

Coto Technology

RELAY (REED), 1 FORM A, 12 VDC, 550 OHMS WITH CO-AXIAL SHIELD (+125C OPERATE TEMP.) /TUBE

Search across all available documentation for this part.

Active

Coto Technology

RELAY (REED), 1 FORM A, 12 VDC, 550 OHMS WITH CO-AXIAL SHIELD (+125C OPERATE TEMP.) /TUBE

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED SPST 500MA 5V

Part	Seal Rating	Termination Style	Contact Form	Contact Rating (Current)	Coil Voltage	Mounting Type	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Must Operate Voltage	Operate Time	Coil Type	Release Time	Switching Voltage	Coil Resistance
Coto Technology 2274-05-021	Sealed - Hermetically	PC Pin	SPST-NO (1 Form A)	0.5 A	5 VDC	Through Hole	50 mA	-20 C	125 °C	0.4 VDC	2.5 VDC	500 µs	Non Latching	0.1 ms	200 VDC, 200 VAC	100 Ohms
Coto Technology 2274-12-021	Sealed - Hermetically	PC Pin	SPST-NO (1 Form A)	0.5 A	12 VDC	Through Hole	21.8 mA	-20 C	125 °C	1 VDC	6.7 VDC	500 µs	Non Latching	0.1 ms	200 VDC, 200 VAC	550 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY (REED), 1 FORM A, 12 VDC, 550 OHMS WITH CO-AXIAL SHIELD (+125C OPERATE TEMP.) /TUBE
