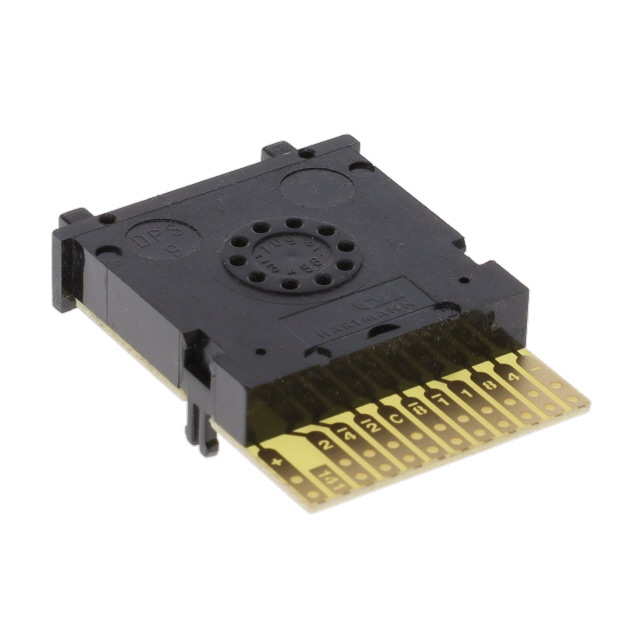

DPS9141AK2
ActiveAPEM
SWITCH THUMB BCD COMP 0.1A 40V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPS9141AK2
ActiveAPEM
SWITCH THUMB BCD COMP 0.1A 40V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPS9141AK2 |
|---|---|
| Actuator Type | Pushwheel |
| Color | Black |
| Contact Finish | Gold |
| Contact Material | Copper Tin Alloy |
| Contact Rating @ Voltage | 0.1 A, 40 VAC/DC |
| Depth Behind Flange | 39.1 mm |
| Display Characters - Height [z] | 0.268 in |
| Display Characters - Height [z] | 6.8 mm |
| End Caps | Sold Separately |
| Housing Material | Polyphenylene Oxide (PPO) |
| Mounting Type | Panel Mount, Snap-In |
| Number of Sections | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Code | BCD with Complement |
| Read Out [Max] | 9 |
| Read Out [Min] | 0 |
| Section Width [x] | 8 mm |
| Section Width [x] | 0.315 in |
| Termination Style | Solder Pad, Card Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 29.80 | |
| 10 | $ 24.61 | |||
| 30 | $ 22.51 | |||
| 100 | $ 20.56 | |||
| 250 | $ 19.30 | |||
| 500 | $ 18.48 | |||
Description
General part information
DPS9141 Series
Thumbwheel Switch BCD with Complement 0.1A @ 40VAC/DC Panel Mount, Snap-In
