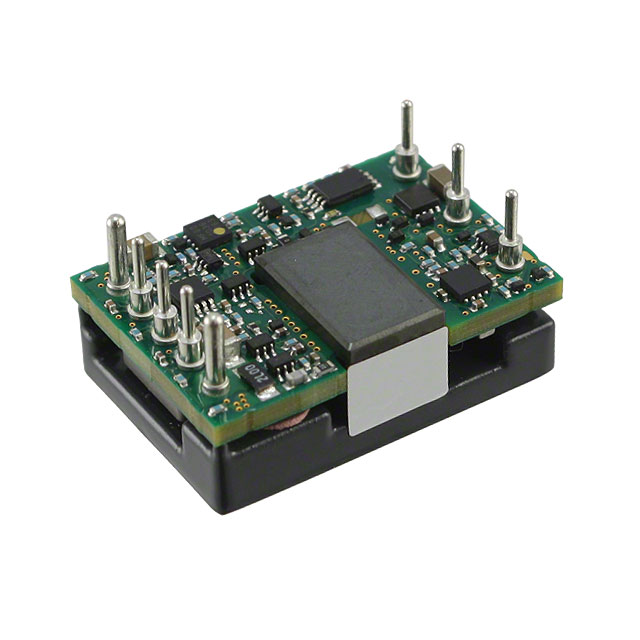

SSQL48T20033-NAABG

Active

Bel Power Solutions

MODULE DC-DC 48VIN 1-OUT 3.3V 20A 66W 8-PIN

Search across all available documentation for this part.

Active

Bel Power Solutions

MODULE DC-DC 48VIN 1-OUT 3.3V 20A 66W 8-PIN

Technical Specifications

Parameters and characteristics for this part

MODULE DC-DC 48VIN 1-OUT 3.3V 20A 66W 8-PIN

Part	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Package / Case	Control Features	Features
Bel Power Solutions SSQL48T20033-NAABG	Isolated Module	90.5 %	85 °C	-40 °C	Through Hole	2250 VDC	3.3 V	36 V	ITE (Commercial)	75 V	20 A	33 mm	0.9 "	22.9 mm	9.5 mm	0.38 in	1.3 "	1	8-DIP Module, 1/16 Brick	Active Low, Enable	Remote On/Off, UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input

Technical documentation and resources

No documents available
