S26HL01GTFPBHV033

Active

Infineon Technologies

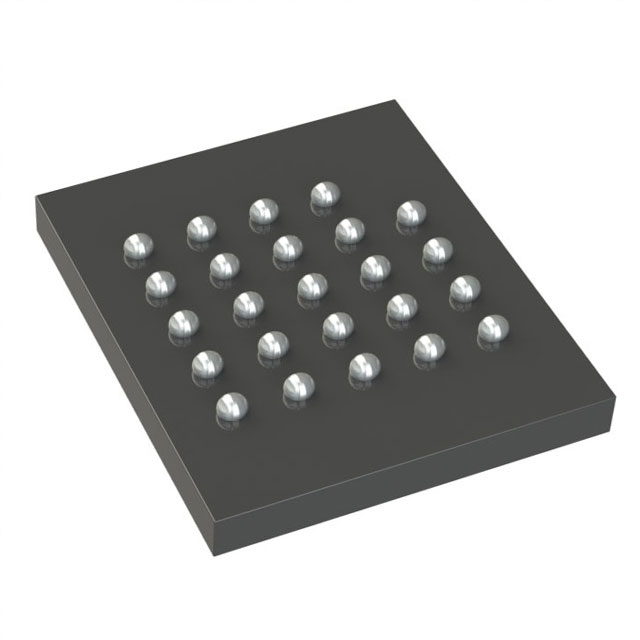

IC FLASH 1GBIT HYPERBUS 24FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S26HL01GTFPBHV033

Active

Infineon Technologies

IC FLASH 1GBIT HYPERBUS 24FBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S26HL01GTFPBHV033

Access Time	6.5 ns
Clock Frequency	166 MHz
Memory Format	FLASH
Memory Interface	HyperBus
Memory Organization	128 M
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-VBGA
Supplier Device Package	24-FBGA (8x8)
Technology	FLASH - NOR (SLC)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page	1.7 ms

S26HL01 Series

Part	Package / Case	Memory Type	Access Time	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Write Cycle Time - Word, Page	Clock Frequency	Mounting Type	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Memory Interface	Memory Format	Supplier Device Package
Infineon Technologies S26HL01GTFPBHV023	24-VBGA	Non-Volatile	6.5 ns	105 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHI023	24-VBGA	Non-Volatile	6.5 ns	85 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHM033	24-VBGA	Non-Volatile	6.5 ns	125 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHM020	24-VBGA	Non-Volatile	6.5 ns	125 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHB030	24-VBGA	Non-Volatile	6.5 ns	105 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHV033	24-VBGA	Non-Volatile	6.5 ns	105 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHV020	24-VBGA	Non-Volatile	6.5 ns	105 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHB023	24-VBGA	Non-Volatile	6.5 ns	105 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHI020	24-VBGA	Non-Volatile	6.5 ns	85 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)
Infineon Technologies S26HL01GTFPBHB033	24-VBGA	Non-Volatile	6.5 ns	105 °C	-40 °C	128 M	1.7 ms	166 MHz	Surface Mount	FLASH - NOR (SLC)	2.7 V	3.6 V	1 Mbit	HyperBus	FLASH	24-FBGA (8x8)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 19.71

Description

General part information

S26HL01 Series

The S26HL01GTFPBHV033 from Infineon is part of the SEMPER™ NOR Flash Memory family with a density of 1 Gbit. It's based on HL-T family and features HYPERBUS™ interface with bandwidth up to 333 MByte/s. This product operates at 3V and has a frequency of 166 MHz. These features are all packed within a small PG-BGA-24 package, making it suitable for a variety of digital storage solutions.
