FMBD-B92D-8012

Active

SCHURTER Inc.

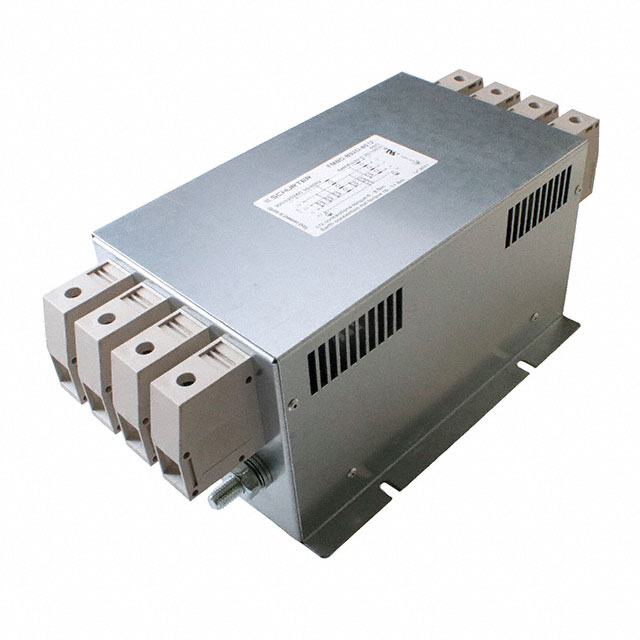

LINE FILTER 300V/520VAC 80A CHAS

Search across all available documentation for this part.

Active

SCHURTER Inc.

LINE FILTER 300V/520VAC 80A CHAS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 613.58

General part information

Three Phase (Wye) EMC/EMI Line Filter 80 A 300V, 520V 50/60Hz Two Stage Terminal Block

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FMBD-B92D-8012	FMBD Series

Applications	General Purpose	General Purpose
Approval Agency	cURus, VDE, ENEC	cURus, VDE, ENEC
Configuration	Two Stage	Two Stage
Current	80 A	8 - 200 A
Filter Type	Three Phase (Wye)	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	4 - 12 µH
Inductance	-	1.3 - 700 µH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Terminal Block	Terminal Block
Voltage - Rated AC [Max]	520 V	520 V
Voltage - Rated AC [Min]	300 V	300 V

LINE FILTER 300/520VAC 200A CHAS

Part	Approval Agency	Applications	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Configuration	Mounting Type	Inductance [custom]	Inductance [custom]	Operating Temperature [custom]	Current
SCHURTER Inc. FMBD-B92F-K012	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount	9 µH	300 µH	-25 °C, 100 °C	200 A
SCHURTER Inc. FMBD-B92C-6412	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount	7.5 mH	700 µH	-25 °C, 100 °C	64 A
SCHURTER Inc. FMBD-B92A-1612	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount	12 µH	1.3 mH	-25 °C, 100 °C	16 A
SCHURTER Inc. FMBD-B92E-J212	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount			-25 °C, 100 °C	120 A
SCHURTER Inc. FMBD-B92B-2512	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount			-25 °C, 100 °C	25 A
SCHURTER Inc. FMBD-B92A-0812	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount	4 µH	2 mH	-25 °C, 100 °C	8 A
SCHURTER Inc. FMBD-B92D-8012	cURus, ENEC, VDE	General Purpose	Terminal Block	60 Hz	50 Hz	Three Phase (Wye)	520 V	300 V	Two Stage	Chassis Mount			-25 °C, 100 °C	80 A
