SML-LXT0805SISUGC

Active

Lumex Opto/Components Inc.

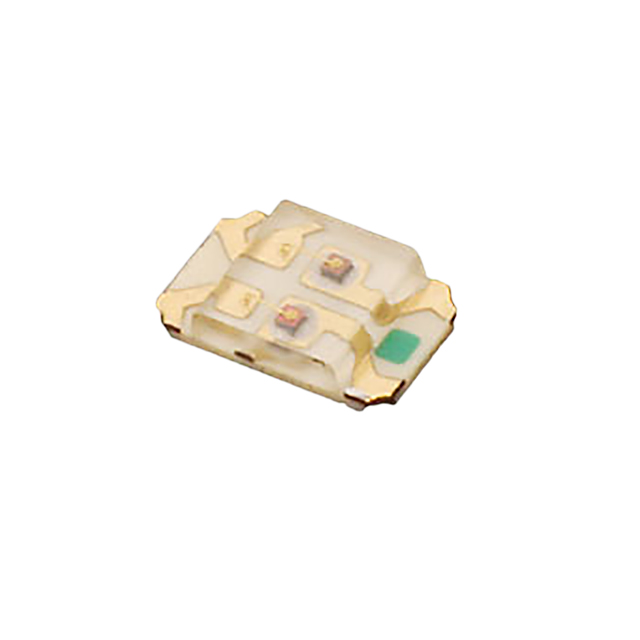

LED GREEN/RED CLEAR SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.62
		10	$ 0.41
		100	$ 0.27
		1000	$ 0.21
	Digi-Reel®	1	$ 0.62
		10	$ 0.41
		100	$ 0.27
		1000	$ 0.21
	Tape & Reel (TR)	2000	$ 0.19
		6000	$ 0.18
		10000	$ 0.17
		50000	$ 0.16

Description

General part information

SML-LXT0805 Series

Green, Red LED Indication - Discrete 2.1V Green, 1.95V Red 0805 (2012 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LXT0805SISUGC	SML-LXT0805 Series

Color	Red, Green	Blue, Red, Green, Yellow
Configuration	Independent	Standard, Independent
Current - Test	20 mA, 20 mA	20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Height (Max)	-	1.25 mm
Height (Max) [Max] [z]	0.4 mm	0.4 - 0.8 mm
Lens Color	Colorless	White, Colorless
Lens Size [x]	1.2 mm	1.2 - 1.4 mm
Lens Size [y]	1.25 mm	1.24 - 1.3 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Clear	Diffused, Clear
Millicandela Rating	250 mcd, 50 mcd	10 - 250 mcd
Millicandela Rating	-	165 mcd
Millicandela Rating	-	104 mcd
Millicandela Rating	-	236 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0805	0805
Size / Dimension [x]	1.25 mm	1.25 - 2 mm
Size / Dimension [y]	2 mm	1.25 - 2 mm
Viewing Angle	120 °	120 - 140 °
Voltage - Forward (Vf) (Typ)	-	1.8 - 4 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	1.95 V	1.95 V
Wavelength - Peak	574 nm, 645 nm	430 - 660 nm
Wavelength - Peak	-	520 nm
Wavelength - Peak	-	632 nm
Wavelength - Peak	-	468 nm

SML-LXT0805 Series

LED BLUE DIFFUSED SMD

Part	Color	Wavelength - Peak	Lens Transparency	Lens Size [x]	Lens Size [y]	Lens Color	Millicandela Rating	Height (Max) [Max] [z]	Lens Style	Configuration	Mounting Type	Package / Case	Voltage - Forward (Vf) (Typ)	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Lumex Opto/Components Inc. SML-LXT0805SBW-TR	Blue	430 nm	Diffused	1.3 mm	1.25 mm	White	11 mcd	0.8 mm	Rectangle with Flat Top	Standard	Surface Mount	0805	4 V	140 °	2 mm	1.25 mm	20 mA
Lumex Opto/Components Inc. SML-LXT0805SIUGUBW	Blue, Green, Red		Diffused	1.4 mm	1.3 mm	White			Rectangle with Flat Top		Surface Mount	0805	2 V, 3.3 V, 3.3 V	140 °	2 mm	1.25 mm		165 mcd	104 mcd	236 mcd	20 mA	20 mA	20 mA	1.25 mm	520 nm	632 nm	468 nm
Lumex Opto/Components Inc. SML-LXT0805GW-TR	Green	565 nm	Diffused	1.3 mm	1.25 mm	White	11 mcd	0.8 mm	Rectangle with Flat Top	Standard	Surface Mount	0805	2 V	140 °	2 mm	1.25 mm	20 mA
Lumex Opto/Components Inc. SML-LXT0805SRW-TR	Red	660 nm	Diffused	1.3 mm	1.25 mm	White	21 mcd	0.8 mm	Rectangle with Flat Top	Standard	Surface Mount	0805	1.8 V	140 °	2 mm	1.25 mm	20 mA
Lumex Opto/Components Inc. SML-LXT0805YW-TR	Yellow	585 nm	Diffused	1.3 mm	1.25 mm	White	10 mcd	0.8 mm	Rectangle with Flat Top	Standard	Surface Mount	0805	2.1 V	140 °	2 mm	1.25 mm	20 mA
Lumex Opto/Components Inc. SML-LXT0805SISUGC	Green, Red	574 nm, 645 nm	Clear	1.2 mm	1.25 mm	Colorless	50 mcd, 250 mcd	0.4 mm	Rectangle with Flat Top	Independent	Surface Mount	0805		120 °	1.25 mm	2 mm	20 mA, 20 mA											2.1 V	1.95 V
Lumex Opto/Components Inc. SML-LXT0805IW-TR	Red	635 nm	Diffused	1.3 mm	1.25 mm	White	11 mcd	0.8 mm	Rectangle with Flat Top	Standard	Surface Mount	0805	2 V	140 °	2 mm	1.25 mm	20 mA
Lumex Opto/Components Inc. SML-LXT0805SYW-TR	Yellow	590 nm	Diffused	1.3 mm	1.25 mm	White	60 mcd	0.8 mm	Rectangle with Flat Top	Standard	Surface Mount	0805	2.1 V	140 °	2 mm	1.25 mm	20 mA
Lumex Opto/Components Inc. SML-LXT0805SUGW-TR	Green		Diffused	1.4 mm	1.24 mm	White	40 mcd		Rectangle with Flat Top	Independent	Surface Mount	0805	2.2 V	140 °	2 mm	1.25 mm	20 mA							1.25 mm
