8917 0095000

Active

Belden Inc.

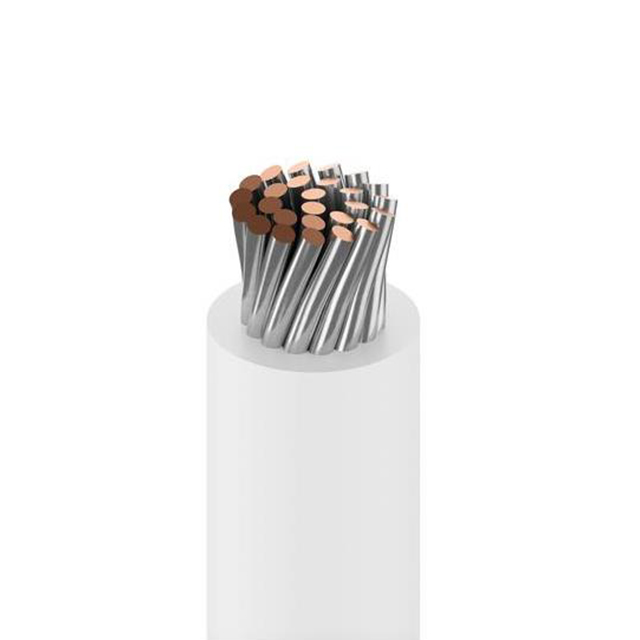

HOOK-UP STRND 16AWG WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8917 0095000

Active

Belden Inc.

HOOK-UP STRND 16AWG WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8917 0095000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter [diameter]	0.123 in
Jacket (Insulation) Diameter [diameter]	3.12 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.81 mm
Jacket (Insulation) Thickness	0.032 in
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage	600 V
Wire Gauge	16 AWG

8917 Series

Part	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Jacket Color	Length	Length	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Accessory Type	For Use With/Related Products
Belden Inc. 8917 0021000	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V	Red	1000 ft	304.8 m	Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm
Belden Inc. 8917 003100	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V	Orange			Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm	30.5 m	100 ft
Belden Inc. 8917 0091000	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V		1000 ft	304.8 m	Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm
Belden Inc. 8917-0220																			Mounting Hardware	Enclosures
Belden Inc. 8917 009500	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V				Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm	152.4 m	500 '
Belden Inc. 8917 005500	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V	Green			Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm	152.4 m	500 '
Belden Inc. 8917 0081000	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V	Gray	1000 ft	304.8 m	Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm
Belden Inc. 8917 0095000	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V				Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm
Belden Inc. 8917 0105000	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V	Black			Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm
Belden Inc. 8917 0051000	Copper Tinned	0.81 mm	0.032 in	Poly-Vinyl Chloride (PVC)	30 AWG	26	16 AWG	600 V	Green	1000 ft	304.8 m	Hook-Up	-30 ░C	105 ░C	0.123 in	3.12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 1.35

Description

General part information

8917 Series

16 AWG Hook-Up Wire 26/30 White 600V 5000' (1524.0m)
