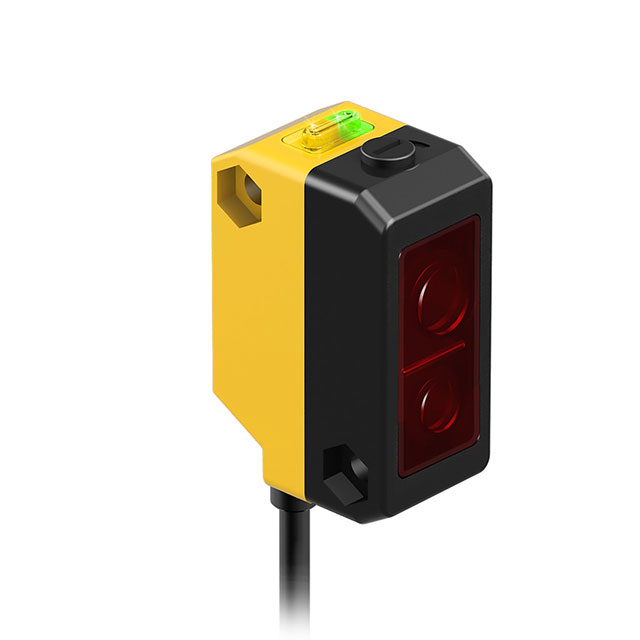

QS18AB6AF300

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, BACKGROUND SUPPRESSION, 300 MM, NPN / PNP, 10 TO 30 VDC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, BACKGROUND SUPPRESSION, 300 MM, NPN / PNP, 10 TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Light Source	Ingress Protection	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Sensing Distance	Sensing Distance	Connection Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Cable Length	Cable Length	Adjustment Type
BANNER ENGINEERING QS18ANWLPQ2	Red	630 nm	NEMA 6P IEC IP67	8.3 ms	70 °C	-25 °C	Light-On	11.48 ft	350 cm	Connector	20 VAC 20 VDC	270 VDC 270 VAC/DC	Polarized Retroreflective
BANNER ENGINEERING QS18AP6LP-93092	LED		NEMA 6P IEC IP67	600 µs	70 °C	-20 C	PNP - Dark-ON/Light-ON	137.795 in	350 cm		10 VDC	30 VDC	Polarized Retroreflective
BANNER ENGINEERING QS18APWLP	Red (660nm)		NEMA 6P IEC IP67	8.3 ms	70 °C	-20 C		137.795 in	350 cm	Cable	20 VDC/VAC	140 VDC/VAC	Polarized Retroreflective	78.74 in	2 m
BANNER ENGINEERING QS18APWLVQ2	Red	630 nm	NEMA 6P IEC IP67	8.3 ms	70 °C	-25 °C	Light-On	21.33 ft	6.5 m	Connector	20 VAC 20 VDC	140 VAC 140 V	NonPolarized Retroreflective
BANNER ENGINEERING QS18APWLPQ2	Red (660nm)		NEMA 6P IEC IP67	8.3 ms	70 °C	-20 C		137.795 in	350 cm	Connector	20 VDC/VAC	140 VDC/VAC	Polarized Retroreflective
BANNER ENGINEERING QS18AB6AF300	Red LED		NEMA 6P IEC IP67	2.5 ms	55 °C	-20 C	NPN/PNP - Light-ON	11.811 in	300 mm	Cable	10 VDC	30 VDC	Background Suppression	78.74 in	2 m	Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Background Suppression Optical Sensor 11.811" (300mm) NPN/PNP - Light-ON
