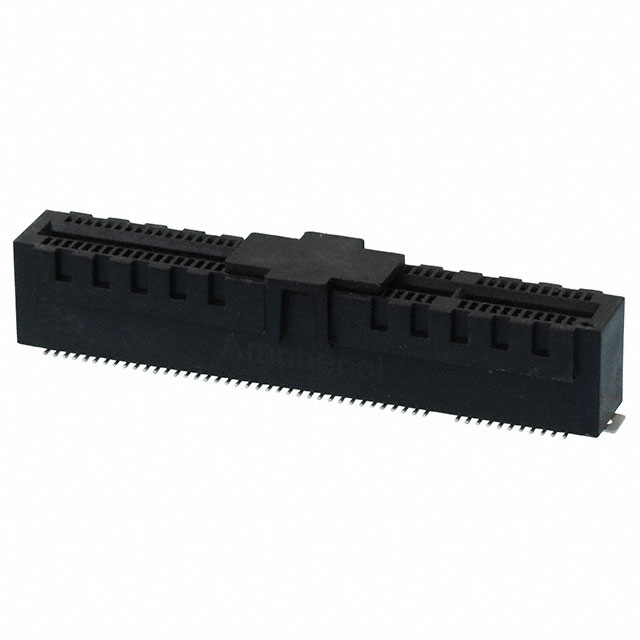

Specification	G630H982621EU

Card Thickness	0.062 in
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Features	Locking Ramp
Gender	Female
Material - Insulation	Polyamide, PA9T, Nylon 9T
Mounting Type	Surface Mount
Number of Positions	98
Number of Rows	2
Pitch	0.039 in
Read Out	Dual
Termination	Solder

G630 Series

Part	Material - Insulation	Pitch	Card Type	Termination	Read Out	Contact Finish Thickness	Number of Rows	Card Thickness	Color	Features	Gender	Contact Material	Number of Positions	Contact Finish	Mounting Type	Flange Feature Opening Size	Flange Feature
Amphenol ICC (Commercial Products) G630HAA2621EU	Nylon 9T PA9T Polyamide	0.039 in	PCI Express™	Solder	Dual	30 µin	2	0.062 in	Black	Board Guide Cap Locking Ramp	Female	Copper Alloy	164	Gold	Surface Mount
Amphenol ICC (Commercial Products) G630HAA1621EU	Nylon 9T PA9T Polyamide	0.039 in	PCI Express™	Solder	Dual	15 µin	2	0.062 in	Black	Board Guide Cap Locking Ramp	Female	Copper Alloy	164	Gold	Surface Mount
Amphenol ICC (Commercial Products) G630HAA12246EU	Nylon 9T PA9T Polyamide	0.039 in	PCI Express™	Solder	Dual	15 µin	2	0.062 in	Black	Card Extender Locking Ramp	Female	Copper Alloy	164	Gold	Board Edge Straddle Mount	0.079 in	Straddle Mount Opening Unthreaded
Amphenol ICC (Commercial Products) G630H982621EU	Nylon 9T PA9T Polyamide	0.039 in	PCI Express™	Solder	Dual	30 µin	2	0.062 in	Black	Locking Ramp	Female	Copper Alloy	98	Gold	Surface Mount
Amphenol ICC (Commercial Products) G630H981224BEU	Nylon 9T PA9T Polyamide	0.039 in	PCI Express™	Solder	Dual	15 µin	2	0.093 in	Black	Card Extender Locking Ramp	Female	Copper Alloy	98	Gold	Board Edge Straddle Mount	0.079 in	Straddle Mount Opening Unthreaded
Amphenol ICC (Commercial Products) G630HAA2224AEU	Nylon 9T PA9T Polyamide	0.039 in	PCI Express™	Solder	Dual	30 µin	2	0.093 in	Black	Card Extender Locking Ramp	Female	Copper Alloy	164	Gold	Board Edge Straddle Mount	0.079 in	Straddle Mount Opening Unthreaded
