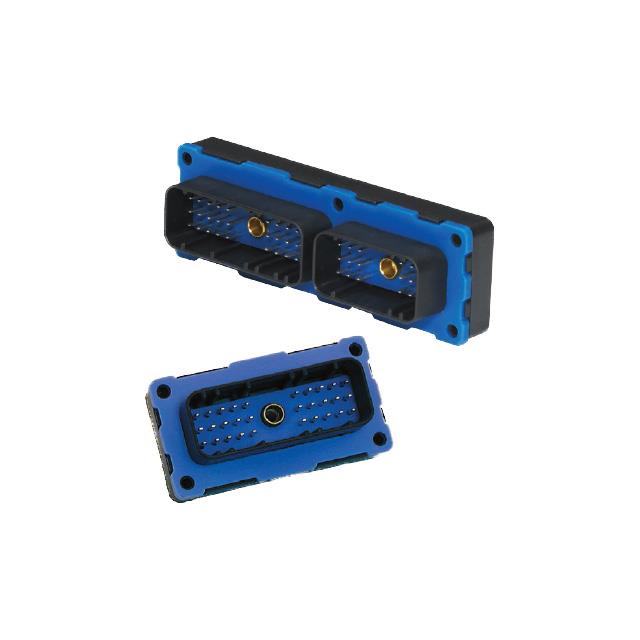

581 01 18 001
ActiveCinch Connectivity Solutions Trompeter
CONN HEADER R/A 18POS
Deep-Dive with AI
Search across all available documentation for this part.
581 01 18 001
ActiveCinch Connectivity Solutions Trompeter
CONN HEADER R/A 18POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 581 01 18 001 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 4.22 mm |
| Contact Length - Post | 0.166 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Features | Ferrite Filter |
| Ingress Protection | IP69K, IP67 |
| Insulation Color | Black |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.66 | |
| 10 | $ 16.18 | |||
| 120 | $ 13.33 | |||
| 600 | $ 12.18 | |||
Description
General part information
581 01 18 Series
Connector Header Through Hole, Right Angle 18 position
