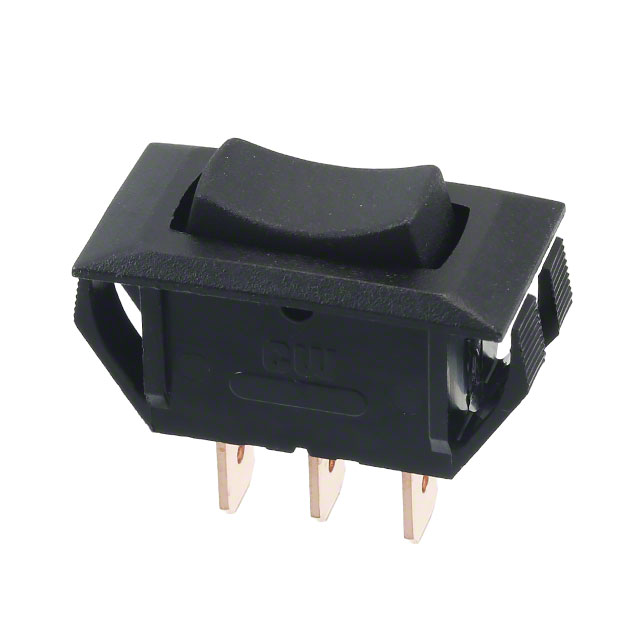

GRS-2013A-2000
ActiveCW Industries
SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GRS-2013A-2000
ActiveCW Industries
SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-2013A-2000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 25000 Steps |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 13.97 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
GRS-2013 Series
| Part | Color - Actuator/Cap | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Actuator Type | Mounting Type | Voltage Rating - AC | Features | Switch Function | Actuator Marking | Circuit | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | White | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 13 A | Concave (Curved) | Panel Mount Snap-In | 125 V | Terminal Barriers | Mom-Off-Mom | No Marking | SPDT | ||
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 13 A | Concave (Curved) | Panel Mount Snap-In | 125 V | On-Off-Mom | No Marking | SPDT | 25000 Steps | 25000 Steps | |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 12.19 mm | 27.23 mm | -20 C | 105 ░C | 8 A | Concave (Curved) | Panel Mount Snap-In | 125 V | On-Off-On | No Marking | SPDT | 25000 Steps | 25000 Steps | |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 12.19 mm | 27.23 mm | -20 C | 105 ░C | 16 A | Concave (Curved) | Panel Mount Snap-In | 125 V | On-Off-On | No Marking | SPDT | 25000 Steps | 25000 Steps | |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 12.19 mm | 27.23 mm | -20 C | 105 ░C | 16 A | Concave (Curved) | Panel Mount Snap-In | 125 V | Polarized Terminal Barriers | On-Off-On | No Marking | SPDT | 25000 Steps | 25000 Steps |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 16 A | Concave (Curved) | Panel Mount Snap-In | 125 V | On-Off-On | No Marking | SPDT | 100000 Cycles | 25000 Steps | |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 16 A | Concave (Curved) | Panel Mount Snap-In | 125 V | Terminal Barriers | On-Off-On | No Marking | SPDT | 25000 Steps | 25000 Steps |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 16 A | Concave (Curved) | Panel Mount Snap-In | 125 V | Polarized | On-Off-On | No Marking | SPDT | 25000 Steps | 25000 Steps |
CW Industries | Black | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 16 A | Concave (Curved) | Panel Mount Snap-In | 125 V | On-Off-On | I O II | SPDT | 25000 Steps | 25000 Steps | |
CW Industries | Brown | Quick Connect - 0.250" (6.3mm) | 13.97 mm | 28.58 mm | -20 C | 105 ░C | 13 A | Concave (Curved) | Panel Mount Snap-In | 125 V | Terminal Barriers | Mom-Off-Mom | No Marking | SPDT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.12 | |
| 10 | $ 1.00 | |||
| 25 | $ 0.95 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.73 | |||
Description
General part information
GRS-2013 Series
Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
