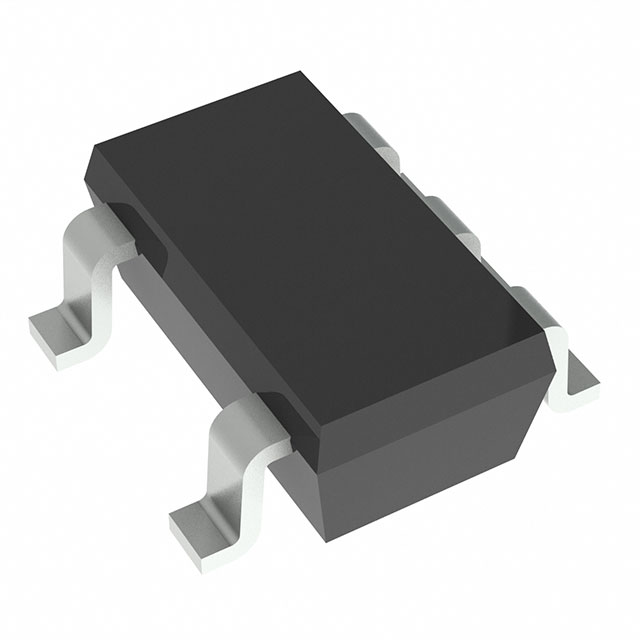

NJM2877F3-33-TE1

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 3.3V 150MA SC88A

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 3.3V 150MA SC88A

Technical Specifications

Parameters and characteristics for this part

Part	Protection Features	Current - Output	Voltage - Output (Min/Fixed)	PSRR	Mounting Type	Output Type	Number of Regulators	Output Configuration	Control Features	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]
Nisshinbo Micro Devices Inc NJM2877F3-18-TE1	Over Current Over Temperature	150 mA	1.8 V	75 dB	Surface Mount	1.81 mOhm	1	Positive	Enable	9 V	180 µA	5-TSSOP SC-70-5 SOT-353	SC-88A	85 °C	-40 °C
Nisshinbo Micro Devices Inc NJM2877F3-03-TE1	Over Current Over Temperature	150 mA		75 dB	Surface Mount	1.81 mOhm	1	Positive	Enable	9 V	180 µA	5-TSSOP SC-70-5 SOT-353	SC-88A	85 °C	-40 °C	0.1 V
Nisshinbo Micro Devices Inc NJM2877F3-05-TE1	Over Current Over Temperature	150 mA	5 V	75 dB	Surface Mount	1.81 mOhm	1	Positive	Enable	9 V	180 µA	5-TSSOP SC-70-5 SOT-353	SC-88A	85 °C	-40 °C	0.1 V
Nisshinbo Micro Devices Inc NJM2877F3-33-TE1	Over Current	150 mA	3.3 V	75 dB	Surface Mount	1.81 mOhm	1	Positive	Enable	9 V	180 µA	5-TSSOP SC-70-5 SOT-353	SC-88A	85 °C	-40 °C	0.1 V
Nisshinbo Micro Devices Inc NJM2877F3-15-TE1	Over Current Over Temperature	150 mA	1.5 V	75 dB	Surface Mount	1.81 mOhm	1	Positive	Enable	9 V	180 µA	5-TSSOP SC-70-5 SOT-353	SC-88A	85 °C	-40 °C
Nisshinbo Micro Devices Inc NJM2877F3-25-TE1	Over Current	150 mA	2.5 V	75 dB	Surface Mount	1.81 mOhm	1	Positive	Enable	9 V	180 µA	5-TSSOP SC-70-5 SOT-353	SC-88A	85 °C	-40 °C	0.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SC-88A
